XPGDPR-LS-0000-00G01

Active

Cree LED

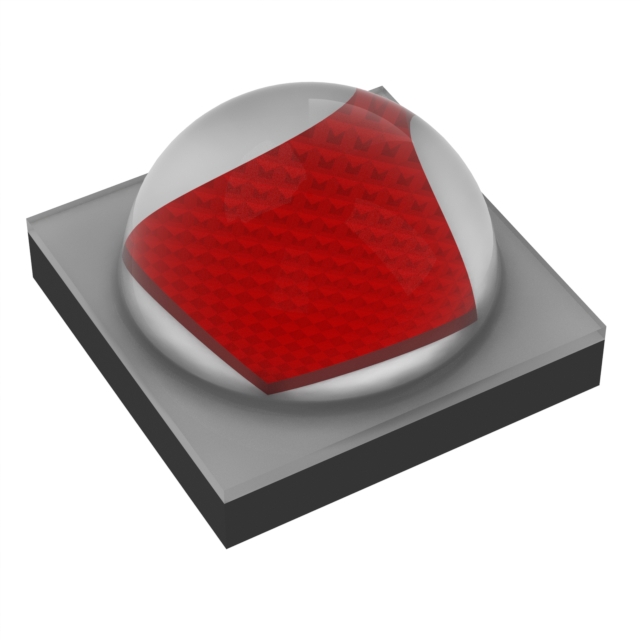

LED XLAMP XPG3 RED 645NM SMD

Search across all available documentation for this part.

Active

Cree LED

LED XLAMP XPG3 RED 645NM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPGDPR-LS-0000-00G01	XPGDPR Series

Color	Red	Red
Current - Max [Max]	1.5 A	1.5 A
Current - Test	350 mA	350 mA
Height - Seated (Max) [Max] [z]	2.39 mm	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "	0.094 "
Luminous Flux @ Current/Temperature	525 mW	488 - 525 mW
Luminous Flux @ Current/Temperature	-	500 mW
Luminous Flux @ Current/Temperature	-	475 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	SMD	SMD, 1414
Thermal Resistance of Package	-	2.5 °C/W
Viewing Angle	125 °	125 °
Voltage - Forward (Vf) (Typ)	1.95 V	1.95 - 1.99 V
Wavelength	645 nm	645 nm

LED XLAMP XPG3 RED 645NM SMD

Part	Current - Test	Wavelength	Supplier Device Package	Viewing Angle	Package / Case	Package / Case	Current - Max [Max]	Luminous Flux @ Current/Temperature	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Thermal Resistance of Package
Cree LED XPGDPR-LS-0000-00G01	350 mA	645 nm	SMD	125 °	3535 Metric	1414	1.5 A	525 mW	Surface Mount	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	Red	1.95 V
Cree LED XPGDPR-L1-0000-00E01	350 mA	645 nm	1414	125 °	3535 Metric	1414	1.5 A	488 mW	Surface Mount	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	Red	1.99 V	500 mW	475 mW
Cree LED XPGDPR-L1-0000-00F01	350 mA	645 nm	SMD	125 °	3535 Metric	1414	1.5 A	513 mW	Surface Mount	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	Red	1.99 V			2.5 °C/W
Cree LED XPGDPR-LS-0000-00F01	350 mA	645 nm	SMD	125 °	3535 Metric	1414	1.5 A	500 mW	Surface Mount	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	Red	1.95 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color Xlamp® XP-G3 Red 645nm (Typ) 1414 (3535 Metric)
