18555.6

Active

Pflitsch

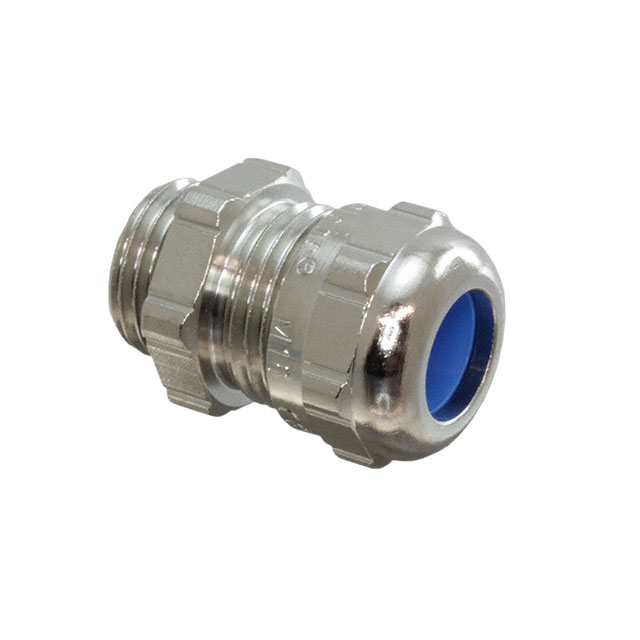

CABLE GLAND 7.11-10.92MM M16

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 7.11-10.92MM M16

Technical Specifications

Parameters and characteristics for this part

Specification	18555.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68, IP69K
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.43 in
Outside Cable Diameter (Max) [Max] [diameter]	10.92 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.28 in
Outside Cable Diameter (Min) [Min] [diameter]	7.11 mm
Panel Hole Size	0.63 in
Panel Hole Size	16 mm
Thread Length	0.24 in
Thread Length	6.1 mm
Thread Size	M16x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Ingress Protection	Color	Material	Panel Hole Size	Panel Hole Size	Includes	Operating Temperature [Min]	Operating Temperature [Max]
Pflitsch 18555.6	0.43 in	10.92 mm	0.24 in	6.1 mm	Cable Gland	0.28 in	7.11 mm	M16x1.5	IP68 IP69K	Silver	Brass Nickel Plated	0.63 in	16 mm	Sealing Ring	-40 °C	300 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M16x1.5 Silver
