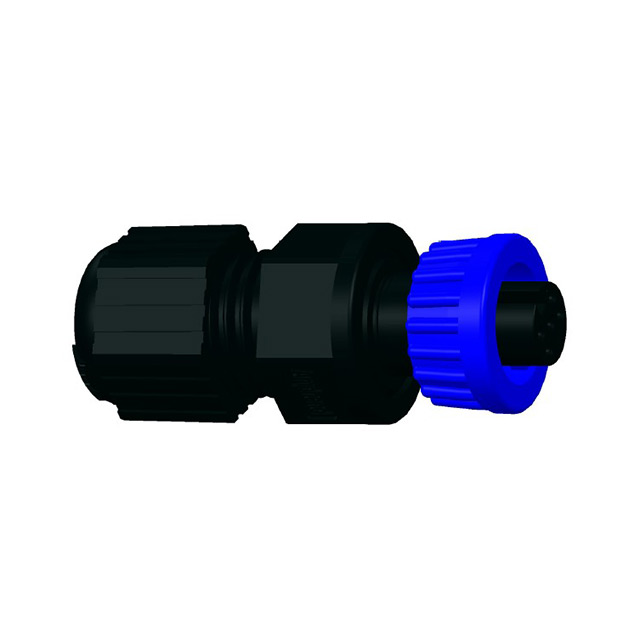

AU-05BFFA-LL7001
ActiveAmphenol LTW
CIRCULAR CONNECTOR, MINI (A) SERIES, CABLE MOUNT RECEPTACLE, 5 CONTACTS, SOLDER SOCKET, BAYONET
Deep-Dive with AI
Search across all available documentation for this part.
AU-05BFFA-LL7001
ActiveAmphenol LTW
CIRCULAR CONNECTOR, MINI (A) SERIES, CABLE MOUNT RECEPTACLE, 5 CONTACTS, SOLDER SOCKET, BAYONET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AU-05BFFA-LL7001 |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | A |
| Shielding | Unshielded |
| Voltage Rating | 300 VDC |
AU-05BFFA Series
| Part | Fastening Type | Features | Mounting Type | Color | Insert Material | Primary Material | Shielding | Current Rating (Amps) | Shell Size - Insert | Contact Material | Shell Material | Orientation | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Voltage Rating | Connector Type | Material Flammability Rating | Backshell Material, Plating | Cable Opening [diameter] | Cable Opening [diameter] | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | Bayonet Lock | Backshell Coupling Nut | Free Hanging (In-Line) | Black | Nylon Polyamide (PA) | Plastic | Unshielded | 2 A | A | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Keyed | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | Gold | 300 VDC | Female Sockets Plug | |||||
Amphenol LTW | Backshell Coupling Nut | Free Hanging (In-Line) | Black | Polyamide (PA) Nylon Glass Filled | Plastic | Unshielded | 2 A | A | Copper Alloy | Keyed | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | Gold | 250 VAC | Female Sockets Plug | UL94 V-0 | Nylon Polyamide (PA) | 4.5 mm 6.5 mm | 0.177 in 0.256 in | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AU-05BFFA Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
