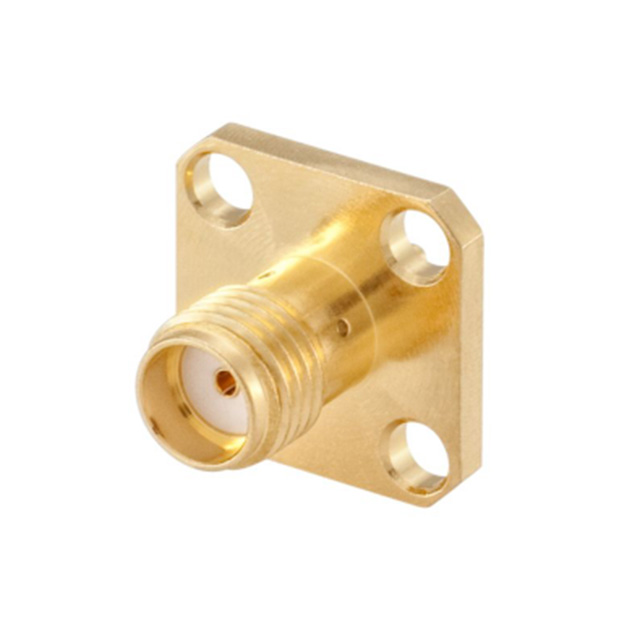

32K441-500L5

Obsolete

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Obsolete

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32K441-500L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Voltage Rating	Body Finish	Contact Termination	Mounting Feature	Connector Style	Frequency - Max [Max]	Center Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Housing Color	Impedance	Connector Type	Shield Termination	Body Material	Number of Ports
Rosenberger 32K441-500L5	480 V	Gold	Solder	Flange	SMA	18 GHz	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Gold	Gold	50 Ohms	Female Socket Jack	Solder	Brass	1
Rosenberger 32K441-600L5	480 V	Gold	Solder	Flange	SMA	12.4 GHz	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Gold	Gold	50 Ohms	Female Socket Jack	Solder	Brass	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
