TFM-103-02-L-S

Active

Samtec Inc.

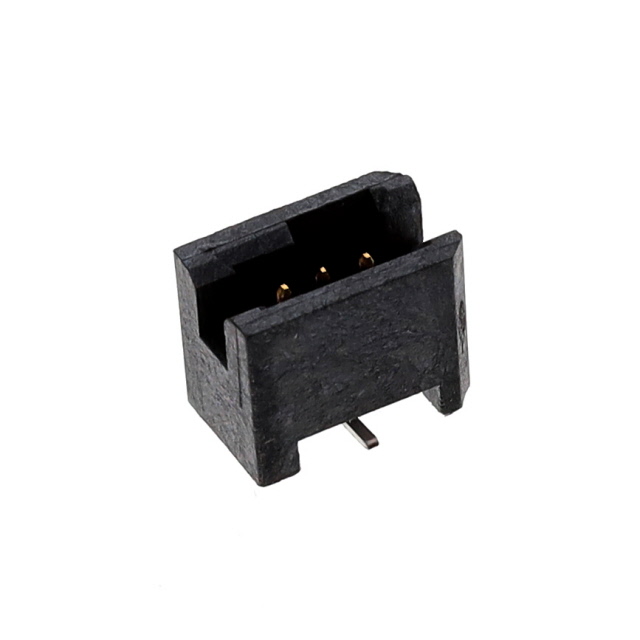

CONN HEADER SMD 3POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTFM Datasheet SFM Series Other Related Documents 03 +2

TFM-103-02-L-S

Active

Samtec Inc.

CONN HEADER SMD 3POS 1.27MM

Deep-Dive with AI

DocumentsTFM Datasheet SFM Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFM-103-02-L-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	3.33 mm
Contact Length - Mating	0.131 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFM-103 Series

Part	Fastening Type	Insulation Color	Shrouding	Contact Shape	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post	Number of Rows	Material Flammability Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Connector Type	Contact Finish - Post	Number of Positions	Insulation Height	Insulation Height	Mounting Type	Features	Contact Finish - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Style	Contact Length - Mating	Contact Length - Mating	Insulation Material	Termination	Voltage Rating	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]
Samtec Inc. TFM-103-01-S-D-RE2-WT	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A	0.11 in	2.79 mm	2	UL94 V-0	Male Pin	30 Áin	0.76 Ám	-55 °C	125 °C	0.05 in	1.27 mm	All	Elevated Header	Tin	6	6.5 mm	0.256 in	Through Hole Right Angle	Solder Retention	Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.139 in	3.53 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC
Samtec Inc. TFM-103-02-S-D-WT-K	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A			2	UL94 V-0	Male Pin	30 Áin	0.76 Ám	-55 °C	125 °C	0.05 in	1.27 mm	All	Header	Tin	6	5.6 mm	0.22 in	Surface Mount	Pick and Place Solder Retention	Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.131 in	3.33 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC
Samtec Inc. TFM-103-03-L-S-WT	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A		2.82 mm	1	UL94 V-0	Male Pin	15 µin	0.38 µm	-55 °C	125 °C			All	Header	Tin		5.6 mm	0.22 in	Through Hole	Solder Retention	Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.139 in	3.53 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC	0.111 in
Samtec Inc. TFM-103-02-S-D	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A			2	UL94 V-0	Male Pin	30 Áin	0.76 Ám	-55 °C	125 °C	0.05 in	1.27 mm	All	Header	Tin	6	5.6 mm	0.22 in	Surface Mount		Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.131 in	3.33 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC
Samtec Inc. TFM-103-02-H-S-WT-K-TR	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A			1	UL94 V-0	Male Pin	30 Áin	0.76 Ám	-55 °C	125 °C			All	Header	Gold		5.6 mm	0.22 in	Surface Mount	Pick and Place Solder Retention	Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.131 in	3.33 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC		3 µin	0.076 µm
Samtec Inc. TFM-103-02-S-S-WT-K-TR	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A 3.2 A			1	UL94 V-0	Male Pin	30 Áin	0.76 Ám	-55 °C	125 °C			All	Header	Tin		5.6 mm	0.22 in	Surface Mount	Pick and Place Solder Retention	Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.131 in	3.33 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC
Samtec Inc. TFM-103-02-L-S	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A			1	UL94 V-0	Male Pin	15 µin	0.38 µm	-55 °C	125 °C			All	Header	Tin		5.6 mm	0.22 in	Surface Mount		Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.131 in	3.33 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC
Samtec Inc. TFM-103-01-L-D	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A	0.078 in		2	UL94 V-0	Male Pin	15 µin	0.38 µm	-55 °C	125 °C	0.05 in	1.27 mm	All	Header	Tin	6	5.6 mm	0.22 in	Through Hole		Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.131 in	3.33 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC				1.98 mm
Samtec Inc. TFM-103-01-L-S-LC	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A	0.078 in		1	UL94 V-0	Male Pin	15 µin	0.38 µm	-55 °C	125 °C			All	Header	Tin		5.6 mm	0.22 in	Through Hole		Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.131 in	3.33 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC				1.98 mm
Samtec Inc. TFM-103-02-L-D-SN-K	Push-Pull	Black	Shrouded - 4 Wall	Square	2.9 A			2	UL94 V-0	Male Pin	15 µin	0.38 µm	-55 °C	125 °C	0.05 in	1.27 mm	All	Header	Tin	6	5.6 mm	0.22 in	Surface Mount	Pick and Place Solder Retention	Gold	Phosphor Bronze	0.05 in	1.27 mm	Board to Board Cable	0.131 in	3.33 mm	Liquid Crystal Polymer (LCP)	Solder	275 VAC
