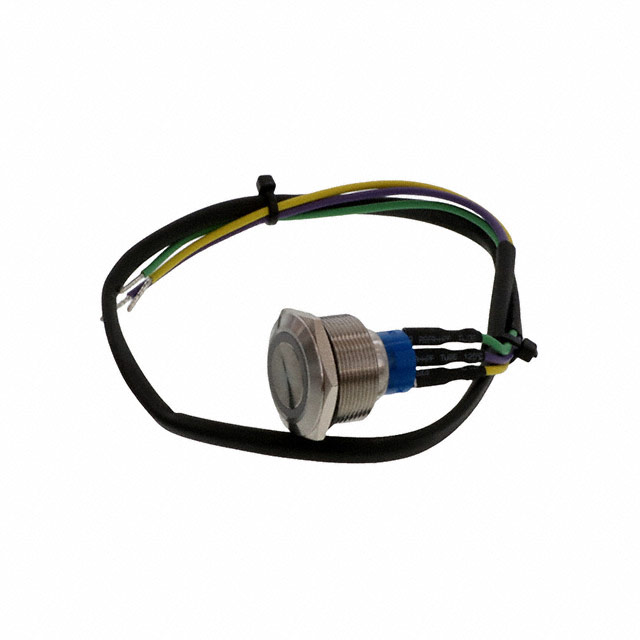

AV25 SPL 3A MOVING RING POWER R&B 12V FL CONFIGURATION (POLE-THROW):SINGLE POLE - SINGLE THROW;NUMBER OF ACTUATORS:SINGLE;ACTUATOR PROFILE:FLUSH;BUSHING STYLE:THREADED;ILLUMINATED:YES SINGLE POLE - SINGLE THROW FLUSH THREADED | PUSHBUTTON SWITCH | PART# AV2511MB12T5Q04 | TE CONNECTIVITY

Deep-Dive with AI

Search across all available documentation for this part.

AV2511MB12T5Q04

Active

TE Connectivity Raychem Cable Protection

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AV2511MB12T5Q04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Features	Power Symbol, Moving LED Ring
Illumination Type, Color	Blue/Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-On
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V

ALCOSWITCH AV25 Series

Part	Type	Color - Actuator/Cap	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mechanical Life	Voltage Rating - AC	Actuator Type	Actuator Marking	Ingress Protection	Switch Function	Current Rating (Amps)	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Mounting Type	Circuit	Electrical Life	Features
TE Connectivity Raychem Cable Protection AV2511EA24T5Q04	Anti-Vandal Illuminated	Silver	24 V	55 °C	-20 C	Wire Leads	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	Green/Red LED	25.2 mm	Panel Mount Front	SPDT	50000 Cycles
TE Connectivity Raychem Cable Protection AV2511MB12T5Q04	Anti-Vandal Illuminated	Silver	12 VDC	55 °C	-20 C	Wire Leads	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	Blue/Red LED	25.2 mm	Panel Mount Front	SPDT	50000 Cycles	Moving LED Ring Power Symbol
TE Connectivity Raychem Cable Protection AV2511MA12T5Q04	Anti-Vandal Illuminated	Silver	12 VDC	55 °C	-20 C	Wire Leads	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	Green/Red LED	25.2 mm	Panel Mount Front	SPDT	50000 Cycles	Moving LED Ring Power Symbol
TE Connectivity Raychem Cable Protection AV2511E312Q04	Anti-Vandal Illuminated	Silver	12 VDC	55 °C	-20 C	Solder Lug	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	LED Red	25.2 mm	Panel Mount Front	SPDT	50000 Cycles
TE Connectivity Raychem Cable Protection AV2511EA12T5Q04	Anti-Vandal Illuminated	Silver	12 VDC	55 °C	-20 C	Wire Leads	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	Green/Red LED	25.2 mm	Panel Mount Front	SPDT	50000 Cycles
TE Connectivity Raychem Cable Protection AV2511MB24T5Q04	Anti-Vandal Illuminated	Silver	24 V	55 °C	-20 C	Wire Leads	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	Blue/Red LED	25.2 mm	Panel Mount Front	SPDT	50000 Cycles	Moving LED Ring Power Symbol
TE Connectivity Raychem Cable Protection AV2511E612Q04	Anti-Vandal Illuminated	Silver	12 VDC	55 °C	-20 C	Solder Lug	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	Green LED	25.2 mm	Panel Mount Front	SPDT	50000 Cycles
TE Connectivity Raychem Cable Protection AV2511M524Q04	Anti-Vandal Illuminated	Silver	24 V	55 °C	-20 C	Solder Lug	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	LED Yellow	25.2 mm	Panel Mount Front	SPDT	50000 Cycles	Moving LED Ring Power Symbol
TE Connectivity Raychem Cable Protection AV2511M124Q04	Anti-Vandal Illuminated	Silver	24 V	55 °C	-20 C	Solder Lug	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	LED White	25.2 mm	Panel Mount Front	SPDT	50000 Cycles	Moving LED Ring Power Symbol
TE Connectivity Raychem Cable Protection AV2511M624Q04	Anti-Vandal Illuminated	Silver	24 V	55 °C	-20 C	Solder Lug	500000 Cycles	250 V	Button Flush Round	No Marking	IP67 - Dust Tight Waterproof	On-On	3 A	Green LED	25.2 mm	Panel Mount Front	SPDT	50000 Cycles	Moving LED Ring Power Symbol
