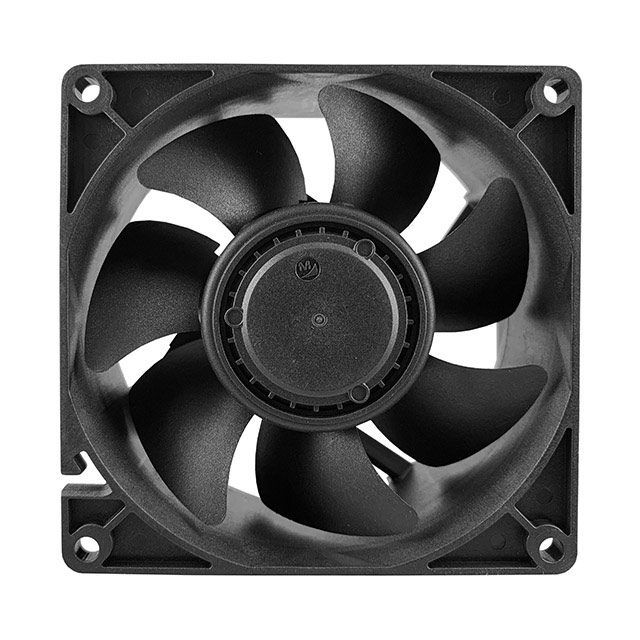

FMA1-09238WBHW12

Active

Qualtek

EC FAN, 92X92X38MM, 2-BALL BEARI

Search across all available documentation for this part.

Active

Qualtek

EC FAN, 92X92X38MM, 2-BALL BEARI

Technical Specifications

Parameters and characteristics for this part

Specification	FMA1-09238WBHW12

Air Flow	67.7 CFM
Air Flow	1.9 m³/min
Approval Agency	CE, cURus
Bearing Type	Ball
Current Rating (Amps)	110 mA
Fan Type	Tubeaxial
Features	Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	42 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	5.5 W
RPM	3500 RPM
Static Pressure	0.288 in H2O
Static Pressure	71.7 Pa
Termination	2 Wire Leads
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	100 VAC
Width [y]	38 mm

Part	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Voltage - Rated [Min]	Voltage - Rated [Max]	Features	Static Pressure	Static Pressure	Noise	Termination	Bearing Type	Lifetime @ Temp.	Power (Watts)	RPM	Current Rating (Amps)	Width [y]	Material - Blade	Ingress Protection	Fan Type	Material - Frame
Qualtek FMA1-09238WBHW12	CE cURus	-20 °C	70 °C	-20 C	70 °C	67.7 CFM	1.9 m³/min	100 VAC	240 VAC	Electronic Commutation (EC)	0.288 in H2O	71.7 Pa	42 dB	2 Wire Leads	Ball	70000 Hrs	5.5 W	3500 RPM	110 mA	38 mm	Plastic	IP54 - Dust Protected Water Resistant	Tubeaxial	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.85

General part information

Fan Tubeaxial 100 ~ 240VAC Square - 92mm L x 92mm H Ball 67.7 CFM (1.90m³/min) 2 Wire Leads
