H3BBH-5018G

Active

Assmann WSW Components

IDC CBL - HHSR50H/AE50G/HHSR50H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR50H/AE50G/HHSR50H

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Shielding	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Cable Termination	Number of Rows	Contact Finish	Color
Assmann WSW Components H3BBH-5018G	Strain Relief	50	Socket to Socket	15 µin	0.38 µm	457.2 mm	1.5 ft	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold
Assmann WSW Components H3BBH-5036M	Strain Relief	50	Socket to Socket	15 µin	0.38 µm	914.4 mm	3 ft	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold	Multiple Ribbon
Assmann WSW Components H3BBH-5036G	Strain Relief	50	Socket to Socket	15 µin	0.38 µm	914.4 mm	3 ft	Unshielded	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	2	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

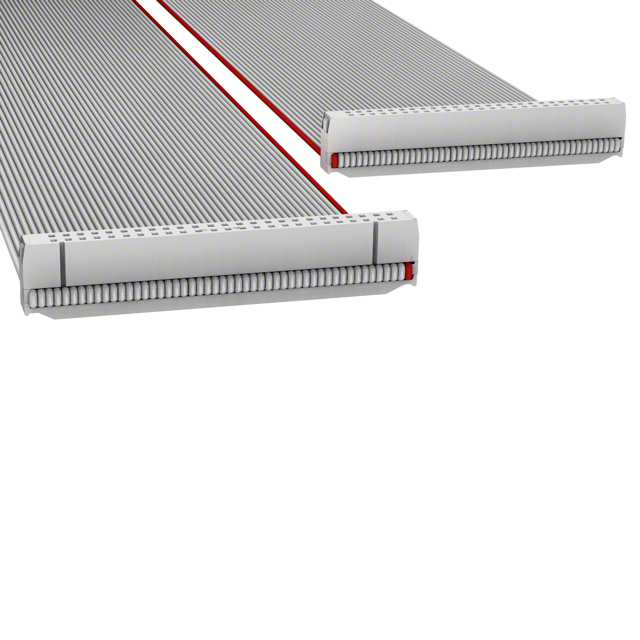

50 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
