Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2964432 | 29644 Series |
|---|---|---|
| Approval Agency | UL, EAC, cULus | UL, EAC, cULus |
| Coil Current | 5 mA | 5 mA |
| Coil Resistance | 24 kOhms | 24 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC | 120 VAC |
| Contact Form | SPST-NO (1 Form A) | SPDT (1 Form C), SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) | Silver Palladium (AgPd), Gold (Au), Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A | 0.5 - 6 mA |
| Features | Lighted Indicator, Varistor, Socket Included | Lighted Indicator, Varistor, Socket Included |
| Load - Max Switching | 140 W, 1500 VA | 140 - 1500 W |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 7 ms | 7 ms |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 11 ms | 11 ms |
| Switching Voltage | 250 VAC, 250 VDC | 30 - 250 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
29644 Series
RELAY GEN PURPOSE SPDT 5MA 120V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage | Coil Voltage | Termination Style | Contact Rating (Current) | Coil Resistance | Relay Type | Release Time | Coil Type | Features | Coil Current | Mounting Type | Operate Time | Contact Form | Contact Material | Load - Max Switching | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2964458 | -20 C | 40 °C | 125 VAC, 150 VDC | 120 VAC, 120 VDC | Screw Terminal | 5 mA | 24 kOhms | General Purpose | 11 ms | Non Latching | Lighted Indicator | 5 mA | DIN Rail | 7 ms | SPDT (1 Form C) | Gold (Au), Silver Palladium (AgPd) | ||
Phoenix Contact 2964445 | -20 C | 40 °C | 250 VAC, 250 VDC | 120 VAC, 120 VDC | Screw Terminal | 6 A | 24 kOhms | General Purpose | 11 ms | Non Latching | Lighted Indicator, Socket Included, Varistor | 5 mA | DIN Rail | 7 ms | SPDT (1 Form C) | Silver Nickel (AgNi) | 140 W, 1500 VA | cULus, EAC, UL |
Phoenix Contact 2964432 | -20 C | 40 °C | 250 VAC, 250 VDC | 120 VAC, 120 VDC | Screw Terminal | 6 A | 24 kOhms | General Purpose | 11 ms | Non Latching | Lighted Indicator, Socket Included, Varistor | 5 mA | DIN Rail | 7 ms | SPST-NO (1 Form A) | Silver Nickel (AgNi) | 140 W, 1500 VA | cULus, EAC, UL |
Phoenix Contact 2964461 | -20 C | 40 °C | 30 VAC, 36 VDC | 120 VAC, 120 VDC | Screw Terminal | 0.5 A | 24 kOhms | General Purpose | 11 ms | Non Latching | Socket Included, Varistor | 5 mA | DIN Rail | 7 ms | SPST-NO (1 Form A) | Gold (Au), Silver Palladium (AgPd) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 74.13 | |
| 10 | $ 68.20 | |||
| 50 | $ 63.01 | |||
| 100 | $ 60.05 | |||
Description
General part information
29644 Series

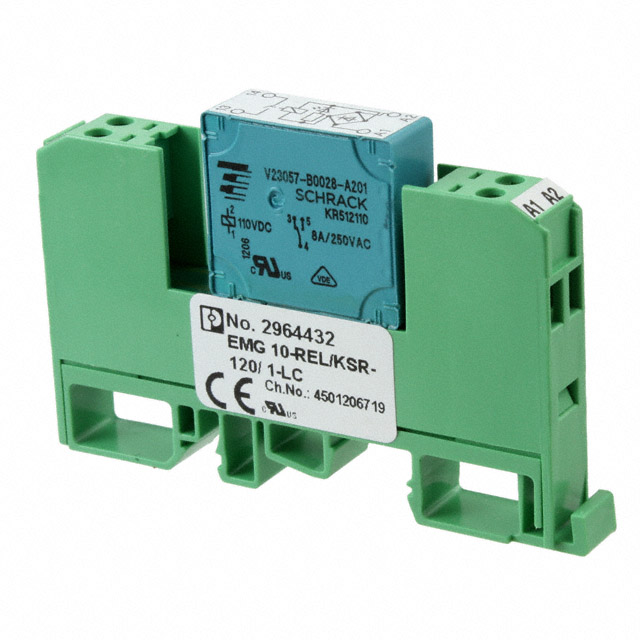

General Purpose Relay SPST-NO (1 Form A) 120VAC/DC Coil DIN Rail
