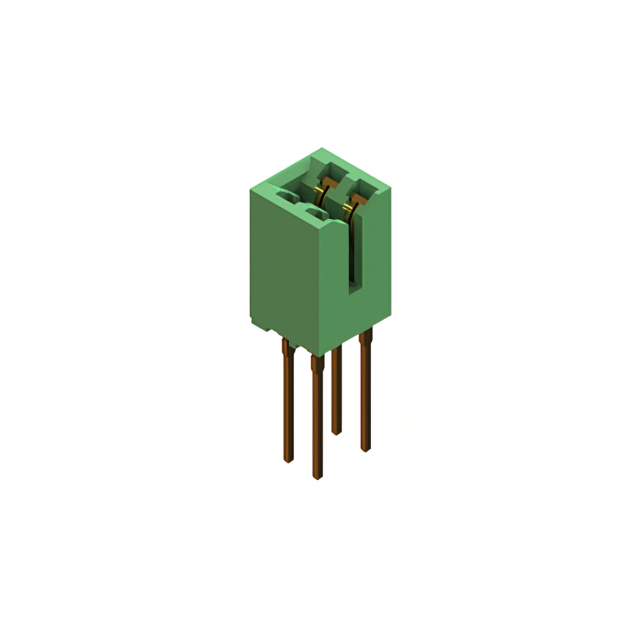

368-004-540-201

Obsolete

EDAC Inc.

CONN EDGE DUAL FMALE 4POS 0.156

Search across all available documentation for this part.

Obsolete

EDAC Inc.

CONN EDGE DUAL FMALE 4POS 0.156

Technical Specifications

Parameters and characteristics for this part

Specification	368-004-540-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	4
Number of Positions/Bay/Row [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

Part	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Contact Material	Card Type	Contact Type	Number of Positions	Read Out	Termination	Color	Material - Insulation	Gender	Number of Rows	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Contact Finish
EDAC Inc. 368-004-540-201	2	-55 °C	125 °C	0.156 in	3.96 mm	Copper Alloy	Non Specified - Dual Edge	Cantilever	4	Dual	Wire Wrap	Green	Diallyl Phthalate (DAP)	Female	2	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	2	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
