846-028-521-212

Active

EDAC Inc.

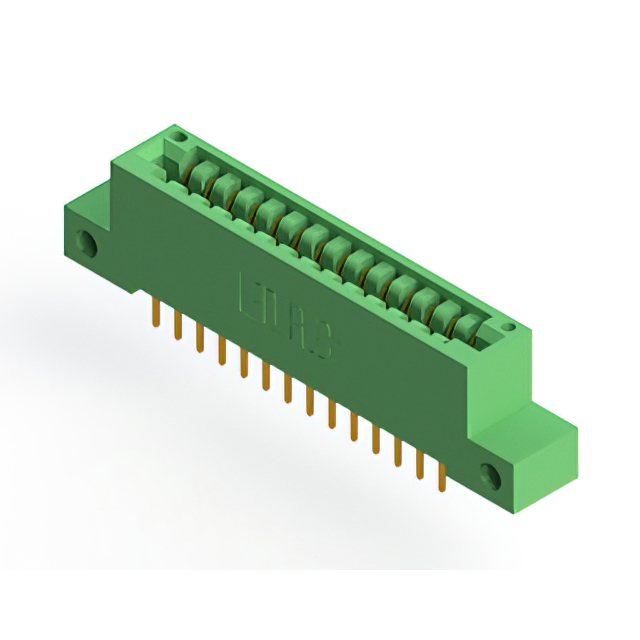

CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.125 INCH PITCH, SOLDER TERMINAL, HOLE .128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-028-521-212

Active

EDAC Inc.

CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.125 INCH PITCH, SOLDER TERMINAL, HOLE .128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-028-521-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	28
Number of Positions/Bay/Row [custom]	14
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

846-028 Series

...

Part	Pitch [x]	Pitch [x]	Card Type	Contact Finish	Number of Positions	Number of Positions/Bay/Row [custom]	Termination	Termination Rows	Number of Rows	Color	Features	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Contact Type	Material - Insulation	Contact Material
EDAC Inc. 846-028-560-212	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	28	14	Solder	2	2	Green	Card Extender	10 Áin	0.25 Ám	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	125 °C	-40 °C	Female	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy
EDAC Inc. 846-028-521-208	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	28	14	Solder	2	2	Green		10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		125 °C	-40 °C	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy
EDAC Inc. 846-028-521-212	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	28	14	Solder	2	2	Green		10 Áin	0.25 Ám	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	125 °C	-40 °C	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy
EDAC Inc. 846-028-526-108	0.125 in	3.18 mm	Non Specified - Single Edge	Gold	28	28	Solder	1	1	Green		10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		125 °C	-40 °C	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy
EDAC Inc. 846-028-500-803	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	28	14	Solder Eyelet(s)	2	2	Green		10 Áin	0.25 Ám	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	125 °C	-40 °C	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy
EDAC Inc. 846-028-500-101	0.125 in	3.18 mm	Non Specified - Single Edge	Gold	28	28	Solder Eyelet(s)	1	1	Green		10 Áin	0.25 Ám				125 °C	-40 °C	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy
EDAC Inc. 846-028-526-102	0.125 in	3.18 mm	Non Specified - Single Edge	Gold	28	28	Solder	1	1	Green		10 Áin	0.25 Ám	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	125 °C	-40 °C	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy
EDAC Inc. 846-028-540-207	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	28	14	Wire Wrap	2	2	Green		10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening		125 °C	-40 °C	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy
EDAC Inc. 846-028-500-108	0.125 in	3.18 mm	Non Specified - Single Edge	Gold	28	28	Solder Eyelet(s)	1	1	Green		10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		125 °C	-40 °C	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy
EDAC Inc. 846-028-520-608	0.125 in	3.18 mm	Non Specified - Single Edge	Gold	28	28	Solder	1	1	Green		10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		125 °C	-40 °C	Female	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Cantilever	Diallyl Phthalate (DAP)	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 52.45

Description

General part information

846-028 Series

28 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
