313003-01
ActiveQualtek
CORD 18AWG 5-15P TO C13 6.56'
Deep-Dive with AI
Search across all available documentation for this part.
313003-01
ActiveQualtek
CORD 18AWG 5-15P TO C13 6.56'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 313003-01 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | IEC 320-C13, Right Angle |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SVT |
| Current Rating (Amps) | 10 A |
| Length [x] | 2 m |
| Length [x] | 6.56 ft |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.53 | |
| 10 | $ 6.54 | |||
| 25 | $ 5.90 | |||
| 50 | $ 5.47 | |||
| 100 | $ 5.08 | |||
| 250 | $ 4.62 | |||
| 500 | $ 4.31 | |||
| 1000 | $ 4.03 | |||
| 2500 | $ 3.74 | |||
Description
General part information
313003 Series

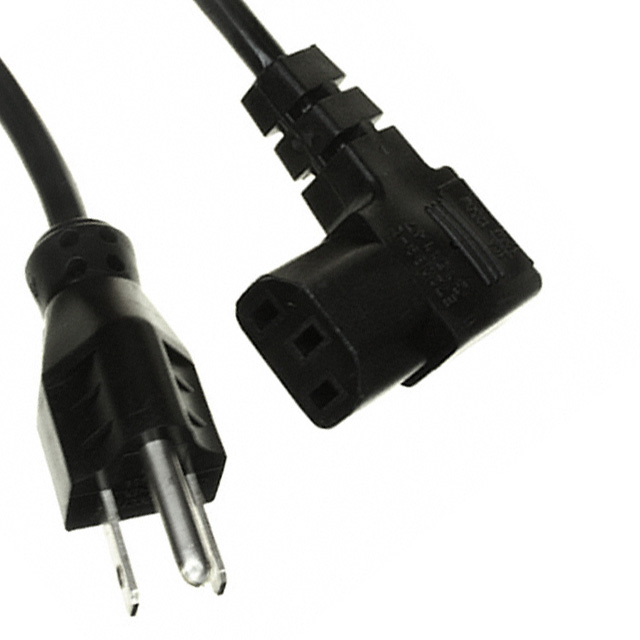

6.56' (2.00m) Power Cord Black NEMA 5-15P To IEC 320-C13, Right Angle SVT
