SSA-LXH1225ID

Active

Lumex Opto/Components Inc.

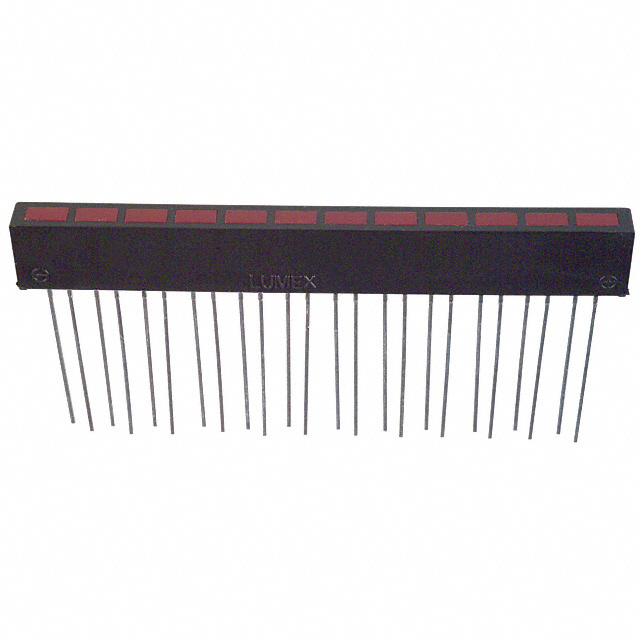

LED CBI 5X2.5MM 12-SEG RED VERT

Deep-Dive with AI

Search across all available documentation for this part.

SSA-LXH1225ID

Active

Lumex Opto/Components Inc.

LED CBI 5X2.5MM 12-SEG RED VERT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSA-LXH1225ID	SSA-LXH1225 Series

Color	Red	Yellow (x 12), Red, Green (x 12)
Configuration	SIP, Bar	SIP, Bar
Configuration	12 Wide	12 Wide
Current	30 mA	25 - 30 mA
Lens Size [x]	5 mm	5 mm
Lens Size [y]	2.5 mm	2.5 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	10 mcd	10 - 100 mcd
Mounting Type	Through Hole	Through Hole
Viewing Angle	110 °	110 °
Voltage Rating	2 V	1.7 - 2.1 V
Wavelength - Peak	635 nm	565 - 660 nm

SSA-LXH1225 Series

LED CBI 5X2.5MM 12-SEG YLW VERT

Part	Wavelength - Peak	Lens Size [y]	Lens Size [x]	Current	Color	Voltage Rating	Lens Type	Millicandela Rating	Configuration	Configuration	Mounting Type	Lens Style	Viewing Angle
Lumex Opto/Components Inc. SSA-LXH1225YD	590 nm	2.5 mm	5 mm	30 mA	Yellow (x 12)	2.1 V	Diffused, Tinted	100 mcd	Bar, SIP	12 Wide	Through Hole	Rectangle with Flat Top	110 °
Lumex Opto/Components Inc. SSA-LXH1225ID	635 nm	2.5 mm	5 mm	30 mA	Red	2 V	Diffused, Tinted	10 mcd	Bar, SIP	12 Wide	Through Hole	Rectangle with Flat Top	110 °
Lumex Opto/Components Inc. SSA-LXH1225GD	565 nm	2.5 mm	5 mm	25 mA	Green (x 12)		Diffused, Tinted	10 mcd	Bar, SIP	12 Wide	Through Hole	Rectangle with Flat Top	110 °
Lumex Opto/Components Inc. SSA-LXH1225SRD	660 nm	2.5 mm	5 mm	30 mA	Red	1.7 V	Diffused, Tinted	10 mcd	Bar, SIP	12 Wide	Through Hole	Rectangle with Flat Top	110 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.18
		10	$ 4.37
		200	$ 3.58
		600	$ 3.02
		1000	$ 2.77
		2000	$ 2.65

Description

General part information

SSA-LXH1225 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 12 Wide, SIP Red (x 12) Diffused, Tinted 2V 30mA Rectangle with Flat Top 5.00mm x 2.50mm Through Hole
