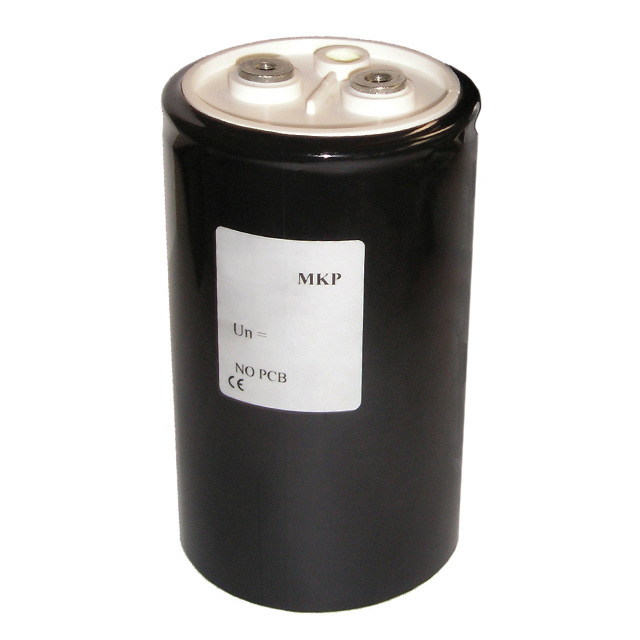

C44UOGT7200G5SK

Active

KEMET

CAP FILM 2000UF 10% 900VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C44UOGT7200G5SK

Active

KEMET

CAP FILM 2000UF 10% 900VDC RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C44UOGT7200G5SK

Applications	DC Link, DC Filtering
Capacitance	2 mF
Dielectric Material	Metallized, Polypropylene (PP)
Features	Long Life
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Termination	Threaded, Female
Tolerance	10 %
Voltage Rating - DC	900 VDC

C44UOG Series

Part	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Mounting Type	ESR (Equivalent Series Resistance)	Termination	Dielectric Material	Voltage Rating - DC	Applications	Package / Case	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features
KEMET C44UOGT6900M51K	1.969 in	50 mm	85 °C	-40 °C	116 mm	4.567 in	5.433 in	138 mm	10 %	Chassis Stud Mount	1.2 mOhms	Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can	900 µF
KEMET C44UOGT6700M86K	1.26 in	32 mm	85 °C	-40 °C	85 mm	3.346 "	7.165 in	182 mm	10 %	Chassis Stud Mount	1.3 mOhms	Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can	700 µF
KEMET C44UOGT6600M85K	1.26 in	32 mm	85 °C	-40 °C	85 mm	3.346 "	5.827 in	148 mm	10 %	Chassis Stud Mount	2.4 mOhms	Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can	600 µF
KEMET C44UOGT7180M53K	1.969 in	50 mm	85 °C	-40 °C	116 mm	4.567 in			10 %	Chassis Stud Mount	1.2 mOhms	Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can	1800 µF	9.37 in	238 mm
KEMET C44UOGT7210M54K	1.969 in	50 mm	85 °C	-40 °C	116 mm	4.567 in	10.945 in	278 mm	10 %	Chassis Stud Mount	1.5 mOhm	Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can
KEMET C44UOGT7200G5SK			85 °C	-40 °C					10 %	Chassis Stud Mount		Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can	2 mF			Long Life
KEMET C44UOGT6450M82K	1.26 in	32 mm	85 °C	-40 °C	85 mm	3.346 "	4.646 in	118 mm	10 %	Chassis Stud Mount	1.8 mOhm	Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can	450 µF
KEMET C44UOGT6375M81K	1.26 in	32 mm	85 °C	-40 °C	85 mm	3.346 "	4.055 in	103 mm	10 %	Chassis Stud Mount	1.5 mOhm	Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can	375 µF
KEMET C44UOGT6350A8SK	1.248 in	31.7 mm	85 °C	-40 °C	85 mm	3.346 "	5.748 in	146 mm	10 %	Chassis Stud Mount	3 mOhm	Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can	350 µF			Long Life
KEMET C44UOGT6150A8TK	1.248 in	31.7 mm	85 °C	-40 °C	85 mm	3.346 "	2.992 in	76 mm	10 %	Chassis Stud Mount	1.4 mOhms	Threaded Female	Metallized Polypropylene (PP)	900 VDC	DC Filtering DC Link	Radial Can	150 µF			Long Life

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 157.50

Description

General part information

C44UOG Series

2000 µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, Can
