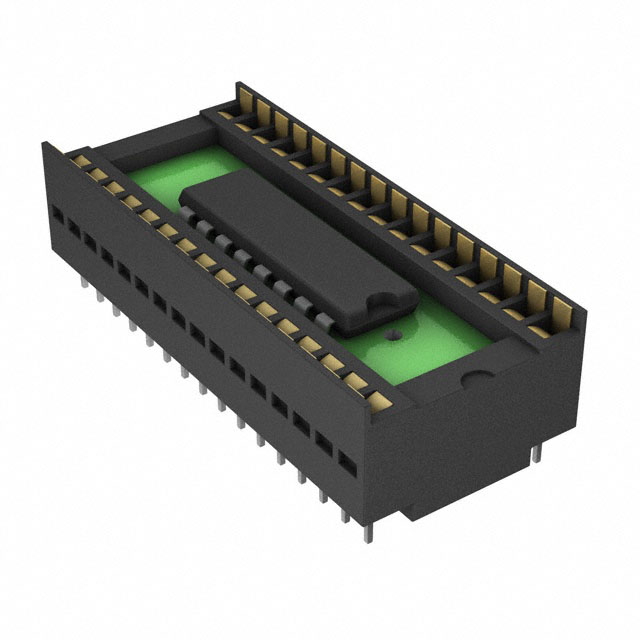

DS1216F
ActiveAnalog Devices Inc./Maxim Integrated
IC SMART/ROM 3V 64/256/1M 32DIP
Deep-Dive with AI
Search across all available documentation for this part.
DS1216F
ActiveAnalog Devices Inc./Maxim Integrated
IC SMART/ROM 3V 64/256/1M 32DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS1216F | DS1216 Series |
|---|---|---|
| Controller Type | Smartwatch ROM | Smartwatch ROM, Smartwatch RAM |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 32-DIP Socket | 32-DIP Socket, 28-DIP Socket |
| Package / Case | - | 15.24 mm |
| Package / Case | - | 0.6 in |
| Package / Case [custom] | 0.6 in | 0.6 in |
| Package / Case [custom] | 15.24 mm | 15.24 mm |
| Supplier Device Package | 32-DIP Socket | 32-DIP Socket, 28-DIP Socket |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DS1216 Series
IC SMART/ROM 3V 64/256/1M 32DIP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Controller Type | Mounting Type | Supplier Device Package | Package / Case | Package / Case [custom] | Package / Case [custom] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS1216F | 70 °C | 0 °C | 4.5 V | 5.5 V | Smartwatch ROM | Through Hole | 32-DIP Socket | 32-DIP Socket | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated DS1216H | 70 °C | 0 °C | 4.5 V | 5.5 V | Smartwatch RAM | Through Hole | 32-DIP Socket | 32-DIP Socket | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated DS1216D | 70 °C | 0 °C | 4.5 V | 5.5 V | Smartwatch RAM | Through Hole | 32-DIP Socket | 32-DIP Socket | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated DS1216E | 70 °C | 0 °C | 4.5 V | 5.5 V | Smartwatch ROM | Through Hole | 28-DIP Socket | 28-DIP Socket | 15.24 mm | 0.6 in | ||
Analog Devices Inc./Maxim Integrated DS1216B | 70 °C | 0 °C | 4.5 V | 5.5 V | Smartwatch RAM | Through Hole | 28-DIP Socket | 28-DIP Socket | 15.24 mm | 0.6 in | ||
Analog Devices Inc./Maxim Integrated DS1216C | 70 °C | 0 °C | 4.5 V | 5.5 V | Smartwatch RAM | Through Hole | 28-DIP Socket | 28-DIP Socket | 15.24 mm | 0.6 in |
Description
General part information
DS1216 Series
IC SMART/ROM 3V 64/256/1M 32DIP
Documents
Technical documentation and resources
No documents available
