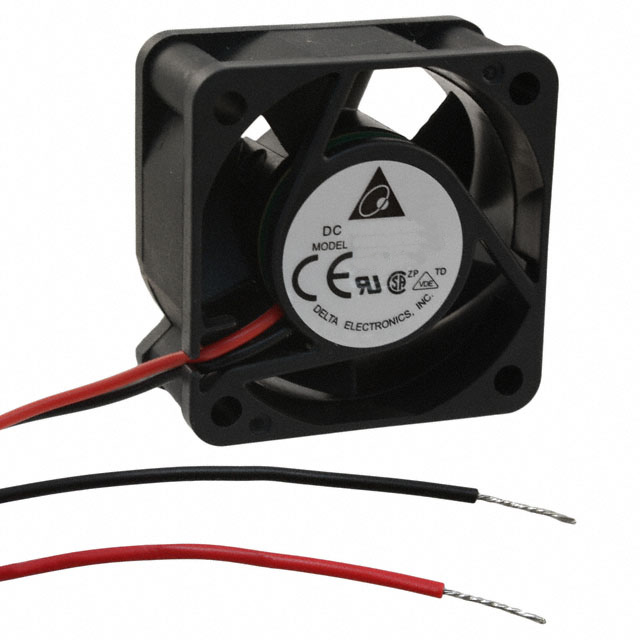

EUB0424MD

Obsolete

Delta Electronics

FAN AXIAL 40X20MM 24VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 40X20MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	RPM	Termination	Weight	Weight	Material - Frame	Approval Agency	Air Flow	Air Flow	Material - Blade	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Lifetime @ Temp.	Fan Type	Current Rating (Amps)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [y]	Voltage Range [Max]	Voltage Range [Min]	Noise	Voltage - Rated
Delta Electronics EUB0424MD	6300 RPM	2 Wire Leads	33.11 g	0.073 lb	Plastic	CE CSA UL VDE	7.2 CFM	0.202 mł/min	Plastic	0.218 in H2O	54.3 Pa	40 mm	Square	40 mm	Superflo	50000 Hrs	Tubeaxial	50 mA	1.2 W	-10 °C	-10 °C	60 °C	60 °C	20 mm	27.6 VDC	14 VDC	24 dB	24 VDC
Delta Electronics EUB0424HD	7600 RPM	2 Wire Leads	33.11 g	0.073 lb	Plastic	CE CSA UL VDE	8.5 CFM	0.238 mł/min	Plastic	0.303 in H2O	75.5 Pa	40 mm	Square	40 mm	Superflo	50000 Hrs	Tubeaxial	60 mA	1.44 W	-10 °C	-10 °C	60 °C	60 °C	20 mm	27.6 VDC	14 VDC	28.5 dB(A)	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Superflo 7.2 CFM (0.202m³/min) 2 Wire Leads
