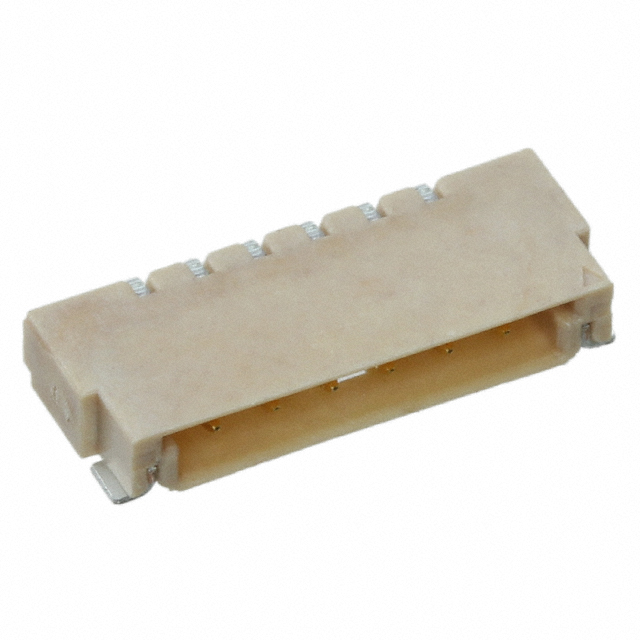

FI-S6P-HFE-E1500

Active

JAE Electronics

BOARD CONNECTOR, 6 CONTACT(S), SURFACE MOUNT TERMINAL, LEAD FREE

Search across all available documentation for this part.

Active

JAE Electronics

BOARD CONNECTOR, 6 CONTACT(S), SURFACE MOUNT TERMINAL, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S6P-HFE-E1500

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin or Tin-Alloy
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Beige
Insulation Height	1.8 mm
Insulation Height	0.071 "
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

Part	Mounting Type	Contact Shape	Voltage Rating	Pitch - Mating	Pitch - Mating	Termination	Shrouding	Insulation Height	Insulation Height	Material Flammability Rating	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Post	Number of Positions Loaded	Number of Rows	Contact Type	Insulation Color	Features	Style	Contact Finish - Mating	Fastening Type	Number of Positions
JAE Electronics FI-S6P-HFE-E1500	Surface Mount Right Angle	Square	200 V	1.25 mm	0.049 in	Solder	Shrouded - 4 Wall	1.8 mm	0.071 "	UL94 V-0	Receptacle	Copper Alloy	-40 °C	80 C	1 A	Tin or Tin-Alloy	All	1	Male Pin	Beige	Solder Retention	Board to Cable/Wire	Gold	Friction Lock	6
