S-8356Q37BD-OYW-TFG

Obsolete

ABLIC Inc.

IC REG CTRLR BOOST 6SNB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S-8356Q37BD-OYW-TFG

Obsolete

ABLIC Inc.

IC REG CTRLR BOOST 6SNB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S-8356Q37BD-OYW-TFG

Clock Sync	False
Control Features	Enable
Duty Cycle (Max) [Max]	78 %
Frequency - Switching	600 kHz
Function	Step-Up
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Phases	1
Output Type	Transistor Driver

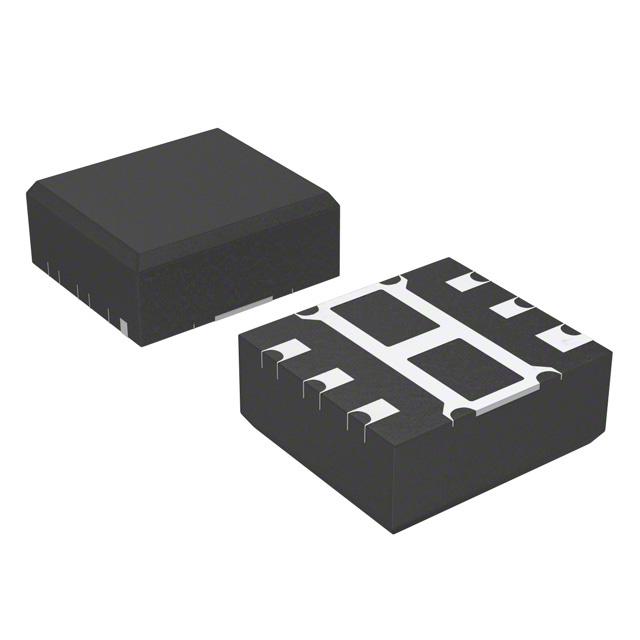

Package / Case	6-VFDFN Exposed Pad
Supplier Device Package	6-SNB
Supplier Device Package [x]	1.8
Supplier Device Package [y]	2
Synchronous Rectifier	False
Topology	Boost
Voltage - Supply (Vcc/Vdd) [Max]	10 V
Voltage - Supply (Vcc/Vdd) [Min]	0.9 V

S-8356 Series

Part	Topology	Function	Output Phases	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Frequency - Switching	Output Configuration	Supplier Device Package	Control Features	Output Type	Duty Cycle (Max) [Max]	Supplier Device Package [x]	Supplier Device Package [y]
ABLIC Inc. S-8356M31MC-MEQT2U	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	SC-74A SOT-753	85 °C	-40 °C	1	300 kHz	Positive	SOT-23-5	Enable	Transistor Driver
ABLIC Inc. S-8356K33MC-NEST2U	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	SC-74A SOT-753	85 °C	-40 °C	1	100 kHz	Positive	SOT-23-5	Enable	Transistor Driver	90 %
ABLIC Inc. S-8356M36MC-MEVT2G	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	SC-74A SOT-753	85 °C	-40 °C	1	300 kHz	Positive	SOT-23-5	Enable	Transistor Driver
ABLIC Inc. S-8356M35MC-MEUT2U	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	SC-74A SOT-753	85 °C	-40 °C	1	300 kHz	Positive	SOT-23-5	Enable	Transistor Driver
ABLIC Inc. S-8356Q28MC-OYNT2G	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	SC-74A SOT-753	85 °C	-40 °C	1	600 kHz	Positive	SOT-23-5	Enable	Transistor Driver
ABLIC Inc. S-8356Q37BD-OYW-TFG	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	6-VFDFN Exposed Pad	85 °C	-40 °C	1	600 kHz	Positive	6-SNB	Enable	Transistor Driver	78 %	1.8	2
ABLIC Inc. S-8356Q40MC-OYZT2G	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	SC-74A SOT-753	85 °C	-40 °C	1	600 kHz	Positive	SOT-23-5	Enable	Transistor Driver
ABLIC Inc. S-8356Q33MC-OYST2G	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	SC-74A SOT-753	85 °C	-40 °C	1	600 kHz	Positive	SOT-23-5	Enable	Transistor Driver	78 %
ABLIC Inc. S-8356K40MC-NEZT2G	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	SC-74A SOT-753	85 °C	-40 °C	1	100 kHz	Positive	SOT-23-5	Enable	Transistor Driver	90 %
ABLIC Inc. S-8356M35MC-MEUT2G	Boost	Step-Up	1	0.9 V	10 V	Surface Mount	SC-74A SOT-753	85 °C	-40 °C	1	300 kHz	Positive	SOT-23-5	Enable	Transistor Driver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

S-8356 Series

Boost Regulator Positive Output Step-Up DC-DC Controller IC 6-SNB (1.8x2.0)

Documents

Technical documentation and resources
