MA145.A.LBC.001

Active

TAOGLAS

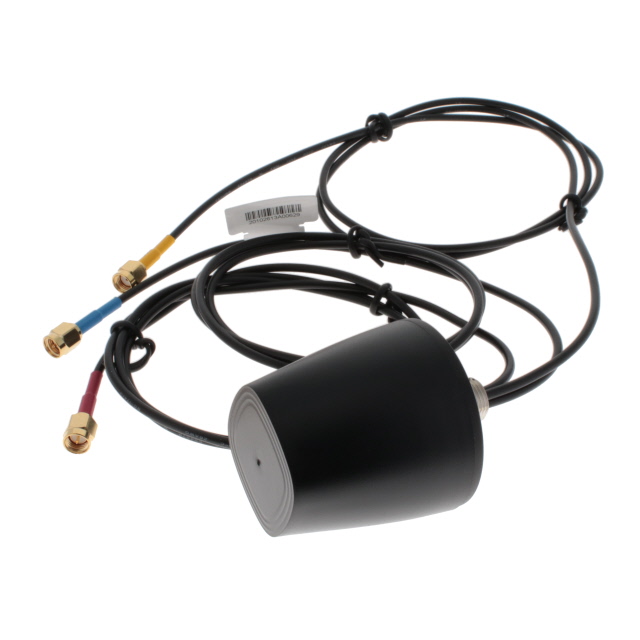

RF ANTENNA, 1.5754 TO 1.602GHZ, CELLULAR/5G/4G/GPS/GALILEO/GNSS/GLONASS/WIFI, 3.6DBI, 50 OHM

Search across all available documentation for this part.

Active

TAOGLAS

RF ANTENNA, 1.5754 TO 1.602GHZ, CELLULAR/5G/4G/GPS/GALILEO/GNSS/GLONASS/WIFI, 3.6DBI, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	MA145.A.LBC.001

Antenna Type	Dome
Applications	5G, GPS, GNSS, 4G, Galileo, GLONASS, 3G, Beidou, LTE, HSPA, HSPA+, WCDMA, Wi-Fi
Features	Filter, Cable - 1m, LNA
Frequency (Center/Band)	1.955 GHz, 2.495 GHz, 752 MHz, 1.602 GHz, 2.45 GHz, 892 MHz, 1.4725 GHz, 5.5 GHz, 1.575 GHz, 3.75 GHz, 657.5 MHz
Frequency Group	Wide Band
Frequency Range [Max]	2.69 GHz, 960 MHz, 806 MHz, 1.518 GHz, 4.2 GHz, 2.5 GHz, 5.85 GHz, 2.2 GHz, 698 MHz
Frequency Range [Min]	1.71 GHz, 5.15 GHz, 824 MHz, 1.427 GHz, 3.3 GHz, 698 MHz, 2.4 GHz, 2.3 GHz, 617 MHz
Gain	-1.98 dBi, 3.8 dBi, 2.7 dBi, 0.4 dBi, -1.67 dBi, 1.3 dBi, 3.1 dBi, 3.5 dBi, 3.6 dBi, -2 dBi
Height (Max) [Max] [z]	1.909 in
Height (Max) [Max] [z]	48.5 mm
Ingress Protection	IP67
Number of Bands	11
Power - Max [Max]	10 W
RF Family/Standard	Navigation, WiFi, Cellular
Termination	RP-SMA Male, SMA Male
VSWR	2

Part	Termination	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Power - Max [Max]	Frequency (Center/Band)	Ingress Protection	Gain	Antenna Type	VSWR	Applications	Number of Bands	Features	Frequency Group	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard
TAOGLAS MA145.A.LBC.001	RP-SMA Male SMA Male	1.909 in	48.5 mm	10 W	1.4725 GHz 1.575 GHz 1.602 GHz 1.955 GHz 2.45 GHz 2.495 GHz 3.75 GHz 5.5 GHz 657.5 MHz 752 MHz 892 MHz	IP67	-2 dBi -1.98 dBi -1.67 dBi 0.4 dBi 1.3 dBi 2.7 dBi 3.1 dBi 3.5 dBi 3.6 dBi 3.8 dBi	Dome	2	3G 4G 5G Beidou Galileo GLONASS GNSS GPS HSPA HSPA+ LTE WCDMA Wi-Fi	11	Cable - 1m Filter LNA	Wide Band	1.518 GHz 2.2 GHz 2.5 GHz 2.69 GHz 4.2 GHz 5.85 GHz 698 MHz 806 MHz 960 MHz	1.427 GHz 1.71 GHz 2.3 GHz 2.4 GHz 3.3 GHz 5.15 GHz 617 MHz 698 MHz 824 MHz	Cellular Navigation WiFi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi Dome RP-SMA Male, SMA Male Panel Mount
