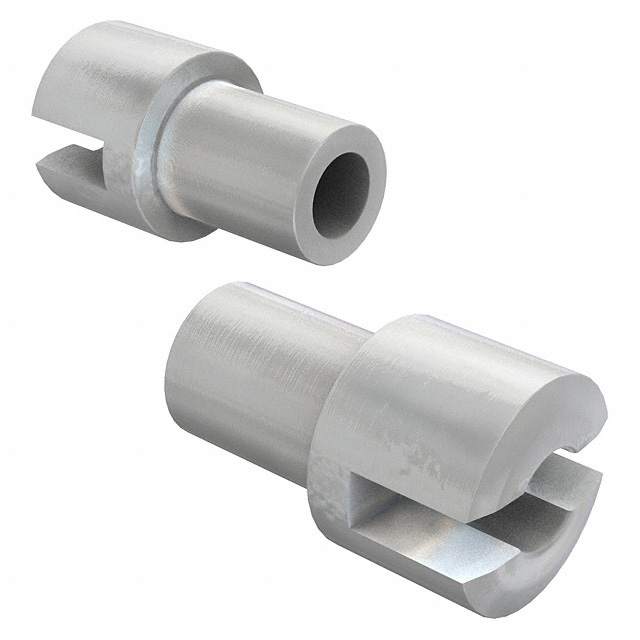

2104-2-01-01-00-00-07-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .047DIA TINLEAD
Deep-Dive with AI
DocumentsSolder Terminals Slotted (metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2104-2-01-01-00-00-07-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.19 mm |
| Flange Diameter [diameter] | 0.047 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 1.78 mm |
| Length - Above Flange [x] | 0.07 in |
| Length - Below Flange [x] | 0.086 in |
| Length - Below Flange [x] | 2.18 mm |
| Length - Overall [x] | 0.156 in |
| Length - Overall [x] | 3.96 mm |
| Mounting Hole Diameter [diameter] | 0.036 " |
| Mounting Hole Diameter [diameter] | 0.91 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.047 in |
| Pin Size - Above Flange [diameter] | 1.19 mm |
| Terminal Style | Single End, Slotted |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.65 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.45 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.39 | |||
Description
General part information
2104-2 Series
PC Pin Terminal Connector Through Hole Tin-Lead 0.047" (1.19mm) Dia
