OKR-T/30-W12-C
ActiveMurata Power Solutions Inc.

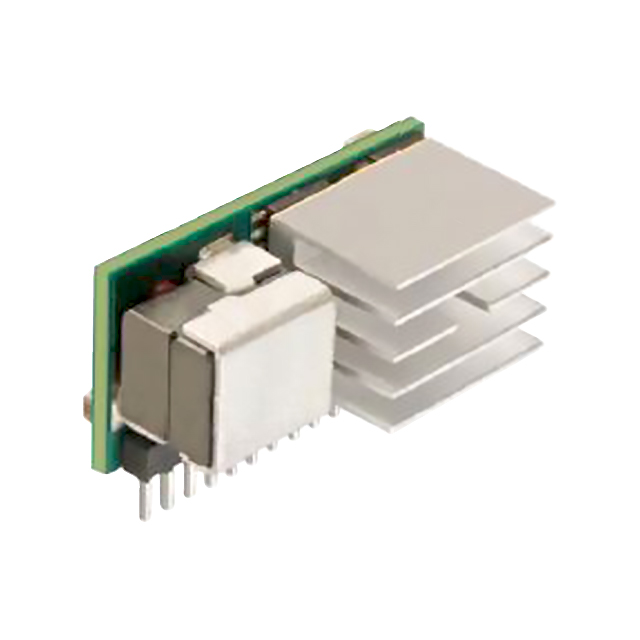

NON ISOLATED POL DC/DC CONVERTER, ITE, SIP, 180 W, 591 MV, 6 V, 30 A
Deep-Dive with AI
Search across all available documentation for this part.
OKR-T/30-W12-C
ActiveMurata Power Solutions Inc.
NON ISOLATED POL DC/DC CONVERTER, ITE, SIP, 180 W, 591 MV, 6 V, 30 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OKR-T/30-W12-C | OKR-T Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable |
| Current - Output (Max) [Max] | 30 A | 1.5 - 30 A |
| Efficiency | 95 % | 92 - 95.5 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OTP, UVLO, SCP, Remote On/Off, OCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 14-SIP Module, 13 Leads | 5-SIP Module, 10-SIP Module, 10 Leads, 14-SIP Module, 13 Leads |
| Power (Watts) | - | 8 - 50 W |
| Size / Dimension | - | 11.2 mm |
| Size / Dimension | - | 15.5 mm |
| Size / Dimension [x] | 30.5 mm | 10.4 - 36.8 mm |
| Size / Dimension [x] | 1.2 " | 0.41 - 1.45 " |
| Size / Dimension [y] | 15.5 mm | 6.1 - 15.5 mm |
| Size / Dimension [y] | 0.61 in | 0.24 - 0.61 " |
| Size / Dimension [z] | 18.1 mm | 10.2 - 18.1 mm |
| Size / Dimension [z] | 0.71 in | 0.4 - 0.71 in |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.8 V | 13.8 - 14 V |
| Voltage - Input (Min) [Min] | 5.5 V | 4.5 - 6 V |
| Voltage - Output 1 [Max] | 6 V | 5 - 6 V |
| Voltage - Output 1 [Min] | 0.591 V | 0.59 - 0.591 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
OKR-T Series
NON ISOLATED POL DC/DC CONVERTER, ITE, SIP, 100 W, 591 MV, 5 V, 20 A
| Part | Applications | Power (Watts) | Number of Outputs | Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Features | Voltage - Input (Min) [Min] | Package / Case | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Current - Output (Max) [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Input (Max) [Max] | Efficiency | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. OKR-T/20-W12-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKR-T/3-W12-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKR-T/30-W12-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKR-T/3-W12-C | ITE (Commercial) | 15 W | 1 | Non-Isolated PoL Module | 16.5 mm | 0.65 in | 7.6 mm | 0.3 " | 0.41 " | 10.4 mm | OCP, OTP, Remote On/Off, SCP, UVLO | 4.5 V | 5-SIP Module | Through Hole | 85 °C | -40 °C | Active High, Enable | 3 A | 6 V | 0.59 V | 14 V | 93 % | ||
Murata Power Solutions Inc. OKR-T/20-W12-C | ITE (Commercial) | 1 | Non-Isolated PoL Module | 0.61 " | 0.44 in | 1.45 " | 36.8 mm | OCP, OTP, Remote On/Off, SCP, UVLO | 6 V | 10-SIP Module, 10 Leads | Through Hole | 85 °C | -40 °C | Active High, Enable | 20 A | 5 V | 0.591 V | 13.8 V | 94 % | 11.2 mm | 15.5 mm | |||
Murata Power Solutions Inc. OKR-T/1.5-W12-C | ITE (Commercial) | 8 W | 1 | Non-Isolated PoL Module | 10.2 mm | 0.4 " | 6.1 mm | 0.24 " | 0.41 " | 10.4 mm | OCP, OTP, Remote On/Off, SCP, UVLO | 4.5 V | 5-SIP Module | Through Hole | 85 °C | -40 °C | Active High, Enable | 1.5 A | 6 V | 0.591 V | 14 V | 95.5 % | ||
Murata Power Solutions Inc. OKR-T/10-W12-C | ITE (Commercial) | 50 W | 1 | Non-Isolated PoL Module | 16.5 mm | 0.65 in | 7.6 mm | 0.3 " | 0.41 " | 10.4 mm | OCP, OTP, Remote On/Off, SCP, UVLO | 4.5 V | 5-SIP Module | Through Hole | 85 °C | -40 °C | Active High, Enable | 10 A | 6 V | 0.591 V | 14 V | 92 % | ||
Murata Power Solutions Inc. OKR-T/30-W12-C | ITE (Commercial) | 1 | Non-Isolated PoL Module | 18.1 mm | 0.71 in | 15.5 mm | 0.61 in | 1.2 " | 30.5 mm | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 5.5 V | 14-SIP Module, 13 Leads | Through Hole | 70 °C | -40 °C | Active High, Enable | 30 A | 6 V | 0.591 V | 13.8 V | 95 % |
Description
General part information
OKR-T Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.591 ~ 6V 30A 5.5V - 13.8V Input
