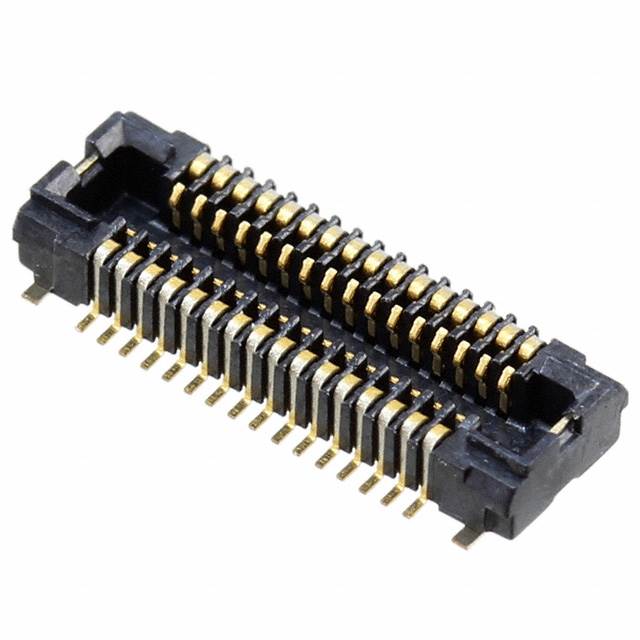

AXT332114

Active

Panasonic Electric Works

CONN SOCKET 32POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 32POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT332114

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Contact Finish	Number of Rows	Mounting Type	Connector Type
Panasonic Electric Works AXT332114	Board Guide Solder Retention	0.016 in	0.4 mm	0.057 in	1.45 mm	1.5 mm	Gold	2	Surface Mount	Outer Shroud Contacts Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 4.66

General part information

32 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
