SMA91EJQD

Active

BANNER ENGINEERING

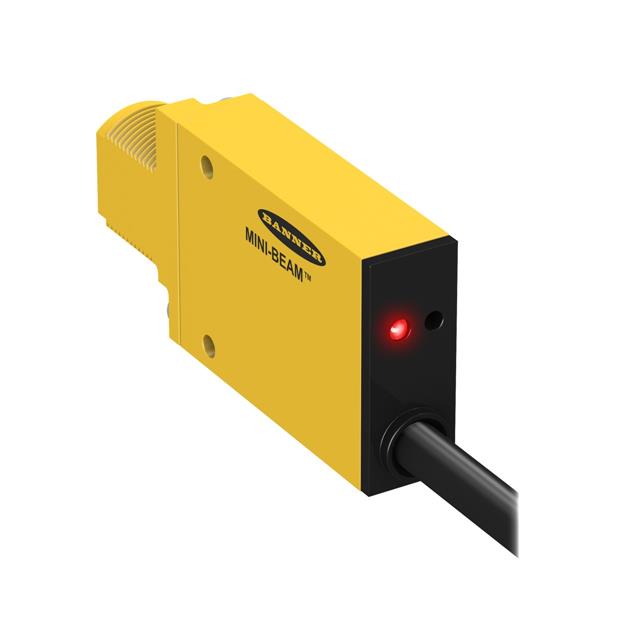

SMA91EJQD W/UC-900J DUST COVER AC/DC EMITTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SMA91EJQD W/UC-900J DUST COVER AC/DC EMITTER

Technical Specifications

Parameters and characteristics for this part

Specification	SMA91EJQD

Connection Method	Connector
Ingress Protection	NEMA 13, NEMA 4, NEMA 12, NEMA 3S, NEMA 2, NEMA 4X, NEMA 6P, IEC IP66, NEMA 1, NEMA 6, NEMA 3
Light Source	Infrared
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Response Time	4 ms
Sensing Distance	60 m
Sensing Distance	196.85 ft
Sensing Method	Through-Beam
Voltage - Supply [Max]	250 VAC, 250 V
Voltage - Supply [Min]	10 VDC, 10 VAC

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Time	Light Source	Connection Method	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Ingress Protection	Sensing Distance	Sensing Distance
BANNER ENGINEERING SMA91EJQD	10 VDC 10 VAC	250 VAC 250 V	4 ms	Infrared	Connector	-20 C	70 °C	Through-Beam	IEC IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	60 m	196.85 ft
BANNER ENGINEERING SMA91R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 233.00
Newark	Each	1	$ 242.00

General part information

Through-Beam Optical Sensor 196.85' (60m)
