1986717-2

Active

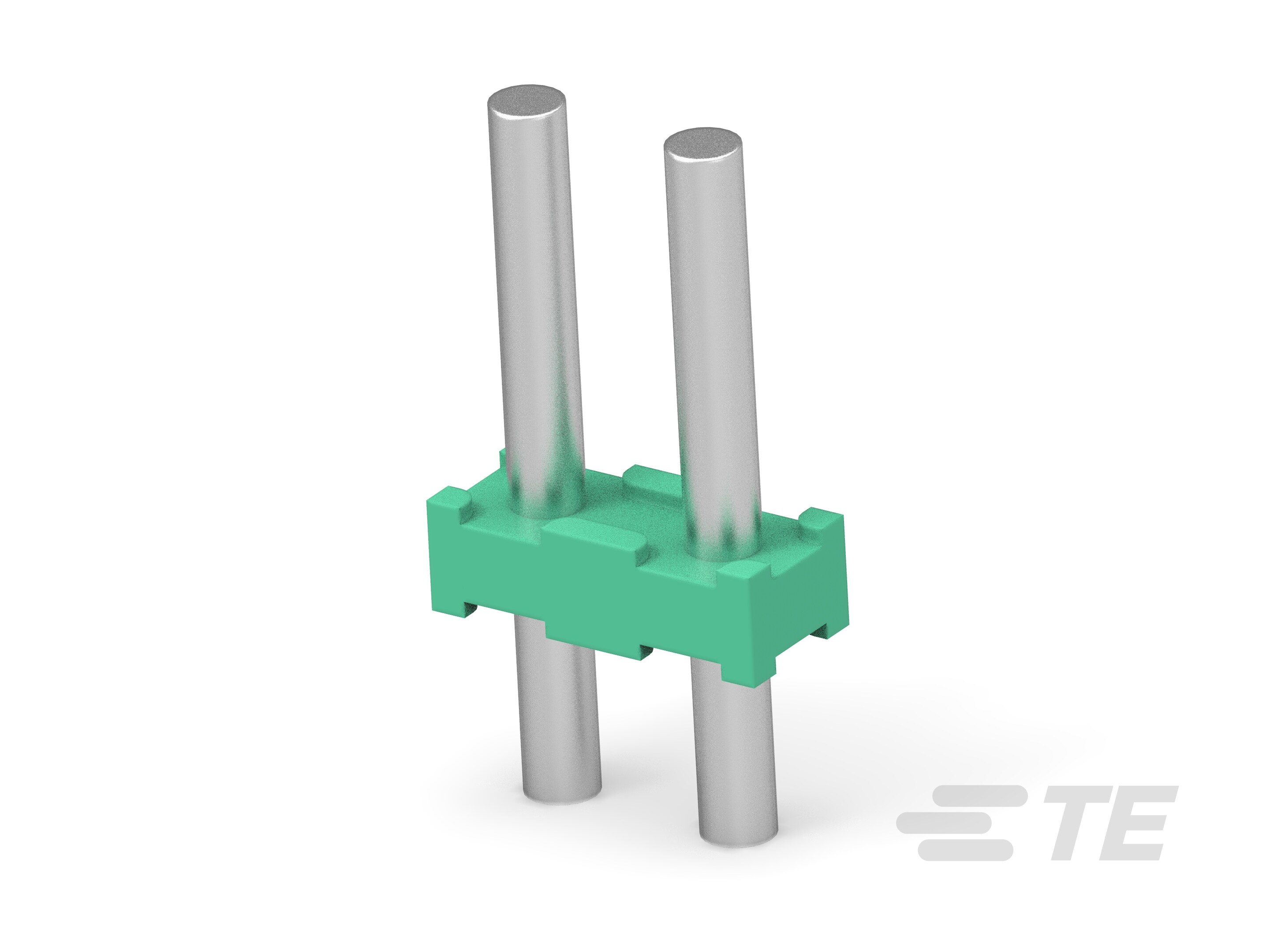

PIN HEADER, WIRE-TO-BOARD, 3.5 MM, 1 ROWS, 2 CONTACTS, THROUGH HOLE STRAIGHT

Active

PIN HEADER, WIRE-TO-BOARD, 3.5 MM, 1 ROWS, 2 CONTACTS, THROUGH HOLE STRAIGHT

Description

General part information

2 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, 24 – 16 AWG, .5 – 1.5 mm² Wire, 150 VAC

Parameters and characteristics for this part

Specification	1986717-2

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Current - UL	2 A
Header Orientation	Vertical
Housing Material	Nylon, Polyamide, PA
Insulation Height	0.079 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Pitch	0.138 in
Positions Per Level	2
Termination Style	Solder
Type	Male Pins, Unshrouded, Header
Voltage - UL	150 V

Part	Number of Positions	Type	Number of Levels	Pitch	Color	Current - UL	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Header Orientation	Mounting Type	Termination Style	Positions Per Level	Contact Mating Finish	Contact Material	Insulation Height	Housing Material	Material Flammability Rating	Contact Tail Length
TE Connectivity AMP Connectors 1986717-8	8	Header Male Pins Unshrouded	1	0.138 in	Green	2 A	150 V	-40 °C	110 °C	Vertical	Through Hole	Solder	8	Tin	Copper Alloy	0.079 in	Nylon PA Polyamide	UL94 V-0	0.138 in
TE Connectivity AMP Connectors 1986717-6	6	Header Male Pins Unshrouded	1	0.138 in	Green	2 A	150 V	-40 °C	110 °C	Vertical	Through Hole	Solder	6	Tin	Copper Alloy	0.079 in	Nylon PA Polyamide	UL94 V-0	0.138 in
TE Connectivity AMP Connectors 1986717-2	2	Header Male Pins Unshrouded	1	0.138 in	Green	2 A	150 V	-40 °C	110 °C	Vertical	Through Hole	Solder	2	Tin	Copper Alloy	0.079 in	Nylon PA Polyamide	UL94 V-0	0.138 in
TE Connectivity AMP Connectors 1986717-5	5	Header Male Pins Unshrouded	1	0.138 in	Green	2 A	150 V	-40 °C	110 °C	Vertical	Through Hole	Solder	5	Tin	Copper Alloy	0.079 in	Nylon PA Polyamide	UL94 V-0	0.138 in
