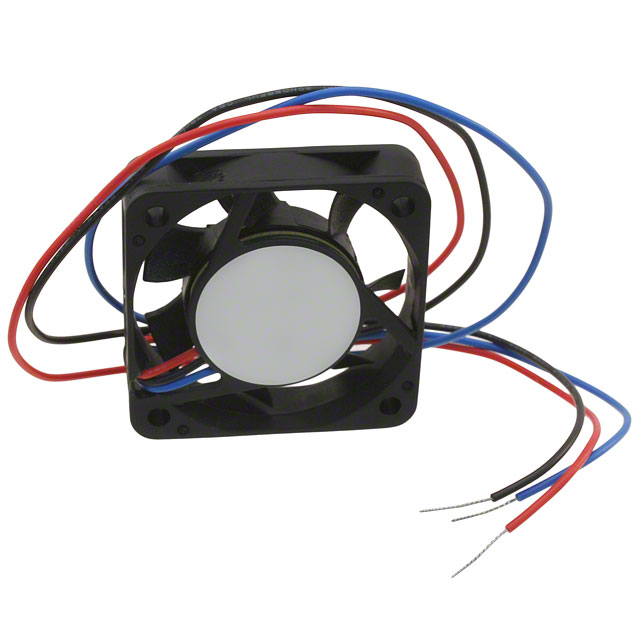

EFB0405HHA-F00

Obsolete

Delta Electronics

FAN AXIAL 40X10MM BALL 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

EFB0405HHA-F00

Obsolete

Delta Electronics

FAN AXIAL 40X10MM BALL 5VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFB0405HHA-F00

Air Flow	8.1 CFM
Air Flow	0.227 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.19 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	33 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	7000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.174 in H2O
Static Pressure	43.3 Pa
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Weight	0.032 lb
Weight	14.51 g
Width [y]	10 mm

EFB0405 Series

Part	RPM	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Lifetime @ Temp.	Approval Agency	Bearing Type	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Noise	Termination	Material - Frame	Material - Blade	Width [y]	Air Flow	Air Flow	Voltage - Rated	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Power (Watts)	Features	Air Flow
Delta Electronics EFB0405LA	4000 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	14.2 Pa	0.057 in H2O	4.5 V	5.5 V	0.032 lb	14.51 g	20.5 dB(A)	2 Wire Leads	Plastic	Plastic	10 mm	0.104 m³/min	3.7 CFM	5 V	70 mA	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	350 mW
Delta Electronics EFB0405HD-F00	7600 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	75.5 Pa	0.303 in H2O	4.5 V	5.5 V	0.073 lb	33.11 g	28.5 dB(A)	3 Wire Leads	Plastic	Plastic	20 mm	0.238 mł/min	8.5 CFM	5 V	0.25 A	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	1.25 W	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0405MD	6300 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	54.3 Pa	0.218 in H2O	4.5 V	5.5 V	0.073 lb	33.11 g	24 dB	2 Wire Leads	Plastic	Plastic	20 mm	0.202 mł/min	7.2 CFM	5 V	150 mA	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	0.75 W
Delta Electronics EFB0405HHA-F00	7000 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	43.3 Pa	0.174 in H2O	4.5 V	5.5 V	0.032 lb	14.51 g	33 dB(A)	3 Wire Leads	Plastic	Plastic	10 mm	0.227 m³/min	8.1 CFM	5 V	0.19 A	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial		Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0405LD-R00	5000 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	33.9 Pa	0.136 in H2O	4.5 V	5.5 V	0.073 lb	33.11 g	22 dB(A)	3 Wire Leads	Plastic	Plastic	20 mm	5.5 CFM		5 V	100 mA	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	0.5 W	Locked Rotor Sensor	0.154 m³/min
Delta Electronics EFB0405VHD	9000 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	103.6 Pa	0.416 in H2O	4.5 V	5.5 V	0.073 lb	33.11 g	32.5 dB	2 Wire Leads	Plastic	Plastic	20 mm	0.283 m³/min	10.1 CFM	5 V	320 mA	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	1.6 W
Delta Electronics EFB0405MA	5000 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	21.9 Pa	0.088 in H2O	4.5 V	5.5 V	0.032 lb	14.51 g	24.5 dB(A)	2 Wire Leads	Plastic	Plastic	10 mm	0.165 m³/min	5.9 CFM	5 V	100 mA	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	0.5 W
Delta Electronics EFB0405MD-9B48	6300 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	54.3 Pa	0.218 in H2O	4.5 V	5.5 V	0.073 lb	33.11 g	24 dB	2 Wire Leads	Plastic	Plastic	20 mm	0.202 mł/min	7.2 CFM	5 V	150 mA					Tubeaxial	0.75 W
Delta Electronics EFB0405LD	5000 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	33.9 Pa	0.136 in H2O	4.5 V	5.5 V	0.073 lb	33.11 g	22 dB(A)	2 Wire Leads	Plastic	Plastic	20 mm	5.5 CFM		5 V	100 mA	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	0.5 W		0.154 m³/min
Delta Electronics EFB0405HD	7600 RPM	40 mm	Square	40 mm	70000 Hrs	CE CSA UL VDE	Ball	75.5 Pa	0.303 in H2O	4.5 V	5.5 V	0.073 lb	33.11 g	28.5 dB(A)	2 Wire Leads	Plastic	Plastic	20 mm	0.238 mł/min	8.5 CFM	5 V	0.25 A	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	1.25 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EFB0405 Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 8.1 CFM (0.227m³/min) 3 Wire Leads
