T2020012002-000
ActiveTE Connectivity AMP Connectors
DDF-0.3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2020012002-000 | T202 Series |
|---|---|---|
| Color | - | Gray |
| Connector Type | - | Insert without Contacts |
| Contact Finish | Gold | Silver, Gold |
| Contact Finish Thickness | 0.75 µm | 0.75 µm |
| Contact Finish Thickness | 29.5 µin | 29.5 µin |
| Contact Termination | Crimp | Crimp |
| Contact Type | - | DD, CD, DDM, CDM, DDF, CDF |
| Current Rating (Amps) | - | 10 A |
| Gender | - | Female, Male |
| Housing Material | - | Polycarbonate (PC), Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | - | UL94 V-0 |
| Number of Positions | - | 40+Ground, Ground, 64+Ground, 15+Ground, 7+Ground, 8+Ground |
| Number of Positions | - | 8 - 25 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Pin or Socket | Socket | Pin, Socket |
| Size | - | H16B, H3A, H16A, H24B, H10A |
| Termination Style | - | Crimp |
| Voltage Rating | - | 50 - 250 VDC |
| Wire Gauge | - | 13.5 - 20 AWG |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.44 | |
| 10 | $ 2.18 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.15 | |||
| 100 | $ 1.97 | |||
| 300 | $ 1.96 | |||
| 500 | $ 1.78 | |||
| 1000 | $ 1.59 | |||
| 2500 | $ 1.47 | |||
T202 Series
CDM-1.5
| Part | Pin or Socket | Wire Gauge | Contact Finish | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Connector Type | Contact Type | Size | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Color | Current Rating (Amps) | Termination Style | Gender | Housing Material | Material Flammability Rating | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2020001015-000 | Pin | 16 AWG | Silver | Crimp | ||||||||||||||||||
TE Connectivity AMP Connectors T2020011008-000 | Pin | 18 AWG | Gold | Crimp | 0.75 µm | 29.5 µin | ||||||||||||||||
TE Connectivity AMP Connectors T2020001002-000 | Pin | Silver | Crimp | 22 AWG | 26 AWG | |||||||||||||||||
TE Connectivity AMP Connectors T2020402201-000 | Insert without Contacts | CD, DD | H16B | 40+Ground | 125 °C | -40 °C | Gray | 10 A | Crimp | Female | Polycarbonate (PC) | UL94 V-0 | 250 VDC | |||||||||
TE Connectivity AMP Connectors T2020002008-000 | Socket | 18 AWG | Silver | Crimp | ||||||||||||||||||
TE Connectivity AMP Connectors T2020012025-000 | Socket | 13.5 AWG | Gold | Crimp | 0.75 µm | 29.5 µin | ||||||||||||||||
TE Connectivity AMP Connectors T2020012015-000 | Socket | 16 AWG | Gold | Crimp | 0.75 µm | 29.5 µin | ||||||||||||||||
TE Connectivity AMP Connectors T2020082201-001 | CDM, DDM | H3A | 125 °C | -40 °C | 10 A | Crimp | Female | Polybutylene Terephthalate (PBT) | UL94 V-0 | 50 V | 8 | |||||||||||
TE Connectivity AMP Connectors T2020002015-000 | Socket | 16 AWG | Silver | Crimp | ||||||||||||||||||
TE Connectivity AMP Connectors T2020011010-000 | Pin | 18 AWG | Gold | Crimp | 0.75 µm | 29.5 µin | ||||||||||||||||
TE Connectivity AMP Connectors T2020011015-000 | Pin | 16 AWG | Gold | Crimp | 0.75 µm | 29.5 µin | ||||||||||||||||
TE Connectivity AMP Connectors T2020252201-000 | Insert without Contacts | CD, DD | H16A | Ground | 125 °C | -40 °C | Gray | 10 A | Crimp | Female | Polycarbonate (PC) | UL94 V-0 | 250 VDC | 25 | ||||||||
TE Connectivity AMP Connectors T2020253201-000 | Insert without Contacts | H16A | Ground | 125 °C | -40 °C | 10 A | Crimp | Female | Polycarbonate (PC) | UL94 V-0 | 250 VDC | 25 | ||||||||||
TE Connectivity AMP Connectors T2021282201-000 | Insert without Contacts | CDF, DDF | H24B | 64+Ground | 10 A | Crimp | Female | Polycarbonate (PC) | UL94 V-0 | 250 VDC | ||||||||||||
TE Connectivity AMP Connectors T2020012005-000 | Socket | 20 AWG | Gold | Crimp | 0.75 µm | 29.5 µin | ||||||||||||||||
TE Connectivity AMP Connectors T2020001005-000 | Pin | 20 AWG | Silver | Crimp | ||||||||||||||||||
TE Connectivity AMP Connectors T2020802201-000 | Insert without Contacts | CDF, DDF | H16B | 40+Ground | 10 A | Crimp | Female | Polycarbonate (PC) | UL94 V-0 | 250 VDC | ||||||||||||
TE Connectivity AMP Connectors T2020001008-000 | Pin | 18 AWG | Silver | Crimp | ||||||||||||||||||
TE Connectivity AMP Connectors T2020002002-000 | Socket | Silver | Crimp | 22 AWG | 26 AWG | |||||||||||||||||
TE Connectivity AMP Connectors T2020082101-001 | CDM, DDM | H3A | 125 °C | -40 °C | 10 A | Crimp | Male | Polybutylene Terephthalate (PBT) | UL94 V-0 | 50 V | 8 | |||||||||||
TE Connectivity AMP Connectors T2020153201-000 | Insert without Contacts | H10A | 15+Ground | 125 °C | -40 °C | 10 A | Crimp | Female | Polycarbonate (PC) | UL94 V-0 | 250 VDC | |||||||||||
TE Connectivity AMP Connectors T2020082201-000 | Insert without Contacts | CD, DD | H3A | 7+Ground | 125 °C | -40 °C | Gray | 10 A | Crimp | Female | Polybutylene Terephthalate (PBT) | UL94 V-0 | 50 V | |||||||||
TE Connectivity AMP Connectors T2020642201-100 | Insert without Contacts | H24B | 64+Ground | 125 °C | -40 °C | 10 A | Crimp | Female | Polycarbonate (PC) | UL94 V-0 | 250 VDC | |||||||||||
TE Connectivity AMP Connectors T2020802201-100 | CDF, DDF | H16B | 40+Ground | Gray | 10 A | Crimp | Female | 250 VDC | ||||||||||||||
TE Connectivity AMP Connectors T2020402101-000 | Insert without Contacts | CDM, DDM | H16B | 40+Ground | 125 °C | -40 °C | 10 A | Crimp | Male | Polycarbonate (PC) | UL94 V-0 | 250 VDC | ||||||||||
TE Connectivity AMP Connectors T2020152201-000 | Insert without Contacts | CDF, DDF | H10A | 15+Ground | 125 °C | -40 °C | 10 A | Crimp | Female | Polycarbonate (PC) | UL94 V-0 | 250 VDC | ||||||||||
TE Connectivity AMP Connectors T2020082101-000 | Insert without Contacts | CDM, DDM | H3A | 8+Ground | 125 °C | -40 °C | 10 A | Crimp | Male | Polybutylene Terephthalate (PBT) | UL94 V-0 | 50 V | ||||||||||
TE Connectivity AMP Connectors T2020011025-000 | Pin | 13.5 AWG | Gold | Crimp | 0.75 µm | 29.5 µin | ||||||||||||||||
TE Connectivity AMP Connectors T2020012002-000 | Socket | Gold | Crimp | 0.75 µm | 29.5 µin | 22 AWG | 26 AWG | |||||||||||||||
TE Connectivity AMP Connectors T2020072101-000 | Insert without Contacts | CDM, DDM | H3A | 7+Ground | 10 A | Crimp | Male | Polybutylene Terephthalate (PBT) | UL94 V-0 | 250 VDC | ||||||||||||
TE Connectivity AMP Connectors T2020011002-000 | Pin | Gold | Crimp | 0.75 µm | 29.5 µin | 22 AWG | 26 AWG | |||||||||||||||
TE Connectivity AMP Connectors T2021282201-100 | CDF, DDF | H24B | 64+Ground | Gray | 10 A | Crimp | Female | 250 VDC |
Description
General part information
T202 Series

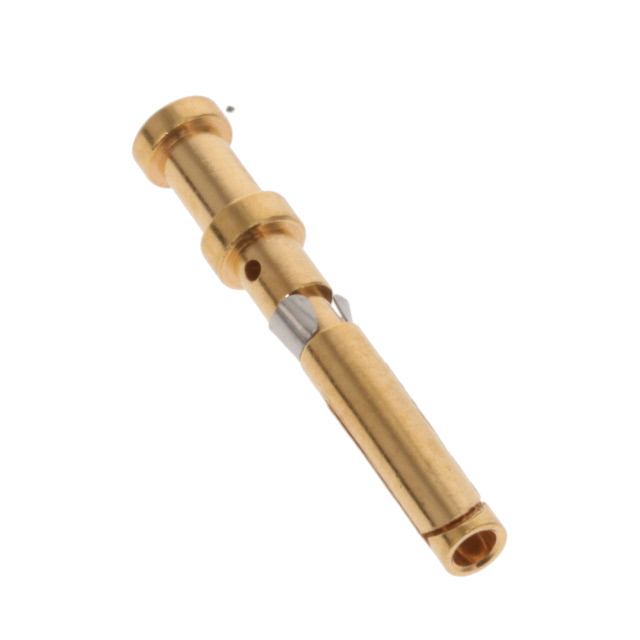

Contact Crimp Socket 22-26 AWG Gold
