EVALTDA388131VOUTTOBO1
ActiveEVALUATION BOARD FEATURING 20 A SYNCHRONOUS BUCK REGULATOR WITH FAST COT CONTROL, ADJUSTABLE CURRENT LIMIT AND VOLTAGE TRACKING
Deep-Dive with AI
Search across all available documentation for this part.
EVALTDA388131VOUTTOBO1
ActiveEVALUATION BOARD FEATURING 20 A SYNCHRONOUS BUCK REGULATOR WITH FAST COT CONTROL, ADJUSTABLE CURRENT LIMIT AND VOLTAGE TRACKING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALTDA388131VOUTTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 12 A |
| Frequency - Switching | 800 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TDA38813 |
| Voltage - Input [Max] | 16 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Output | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TDA38813 Series

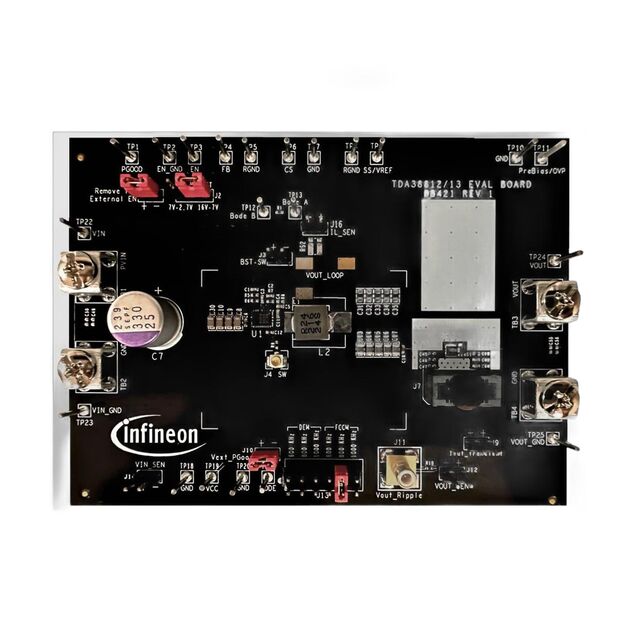

The evaluation board EVAL_TDA38813_1VOUT demonstrates the capability of the compact, versatile, high performance, and easy to useTDA38813point of load regulator that use a proprietary COT that delivers fast transient response required for demanding applications in Server, AI, datacom, telecom and storage markets. The board features VIN= +12 V, VOUT= 1 V, Fsw = 600 KHz - 1000 KHz at Iout0 to 20 A
Documents
Technical documentation and resources
No documents available
