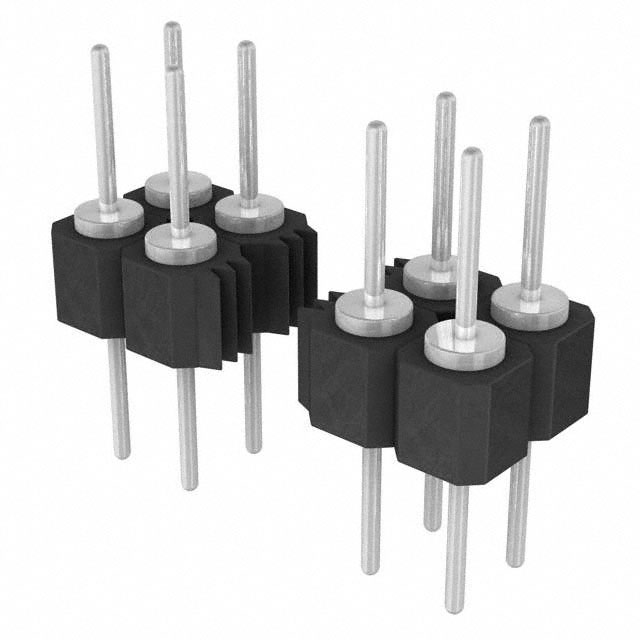

TD-128-T-A
ActiveSamtec Inc.
CONN HEADER VERT 56POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
TD-128-T-A
ActiveSamtec Inc.
CONN HEADER VERT 56POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TD-128-T-A |
|---|---|
| Color | Black |
| Connector Type | Header |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Mounting Type | Through Hole |
| Number of Positions | 56 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.29 | |
| 10 | $ 9.27 | |||
| 100 | $ 8.28 | |||
| 500 | $ 6.94 | |||
| 1000 | $ 6.13 | |||
Description
General part information
TD-128 Series
56 Position Header Connector Post Tin
