S6AW-WL

Active

NKK Switches

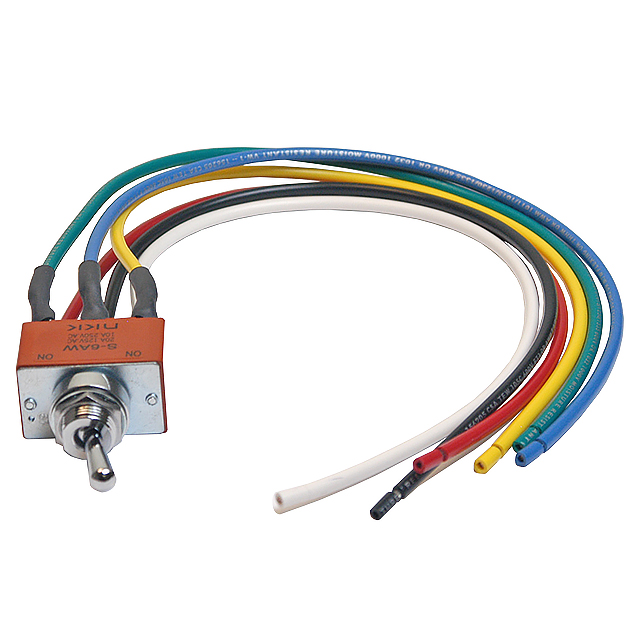

SWITCH TOGGLE DPDT 20A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE DPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	S6AW-WL

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	20 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Ingress Protection	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - DC	Bushing Thread	Bushing Thread	Actuator Type	Actuator Length [x]	Electrical Life	Illumination	Current Rating (Amps)	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material
NKK Switches S6AWB	IP68 - Dust Tight Waterproof	125 V	DPDT	12.5 mm	Solder Lug	30 V	M12	1 x 1	Standard Round	17.5 mm	25000 Steps	Non-Illuminated	15 A 20 A	Waterproof Boot	On-On	70 °C	-30 ░C
NKK Switches S6AWF	IP67 - Dust Tight Waterproof	125 V	DPDT	12.5 mm	Quick Connect - 0.250" (6.3mm)	30 V	M12	1 x 1	Standard Round	17.5 mm	25000 Steps	Non-Illuminated	20 A		On-On	70 °C	-30 ░C	Brass Chrome Plated
NKK Switches S6AW-WL	IP67 - Dust Tight Waterproof	125 V	DPDT	12.5 mm	Wire Leads	30 V	M12	1 x 1	Standard Round	17.5 mm	25000 Steps	Non-Illuminated	20 A		On-On	70 °C	-30 ░C	Brass Chrome Plated
