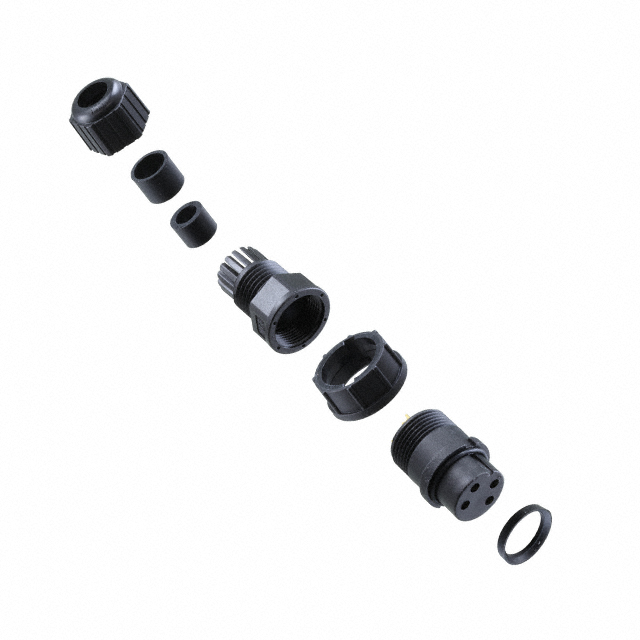

CB-04BFFA-LL7001

Active

Amphenol LTW

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB-04BFFA-LL7001

Active

Amphenol LTW

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB-04BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded

CB-04BFFA Series

Part	Orientation	Shielding	Insert Material	Contact Material	Features	Mounting Type	Color	Number of Positions	Connector Type	Primary Material	Backshell Material, Plating	Shell Size - Insert	Contact Finish - Mating	Ingress Protection	Note	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Shape	Housing Color	Fastening Type	Shell Material	Current Rating (Amps)	Voltage Rating	Termination	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]
Amphenol LTW CB-04BFFA-SL7001	Keyed	Unshielded	Thermoplastic	Copper Alloy	Backshell Coupling Nut	Free Hanging (In-Line)	Black	4	Female Sockets Plug	Plastic	Thermoplastic	C	Gold	IP67 - Dust Tight Waterproof
Amphenol LTW CB-04BFFA-QL8LN0	Keyed	Unshielded	Thermoplastic		Backshell	Free Hanging (In-Line)		4	Plug Housing	Plastic		C		IP68 - Dust Tight Waterproof	Contacts Not Included	For Female Sockets	-40 °C	105 ░C	Crimp	Circular	Black
Amphenol LTW CB-04BFFA-LL7001	Keyed	Unshielded	Polyamide (PA) Nylon Glass Filled	Copper Alloy	Backshell Coupling Nut	Free Hanging (In-Line)	Black	4	Female Sockets Plug	Plastic	Nylon Polyamide (PA)	C	Gold	IP67 - Dust Tight Waterproof			-40 °C	105 ░C				Bayonet Lock	Glass Filled Nylon Polyamide (PA)	10 A
Amphenol LTW CB-04BFFA-QL8LP0	Keyed	Unshielded	Polyamide (PA) Nylon Glass Filled	Copper Alloy	Backshell	Free Hanging (In-Line)	Black	4	Female Sockets Plug	Plastic		C	Gold	IP68 - Dust Tight Waterproof			-40 °C	105 ░C				Push-Pull	Glass Filled Nylon Polyamide (PA)	10 A	300 VAC	Crimp	UL94 V-0	10 mm 12 mm	0.394 in 0.472 in
Amphenol LTW CB-04BFFA-QL8AP0	Keyed	Unshielded	Thermoplastic	Copper Alloy	Backshell	Free Hanging (In-Line)	Black	4	Female Sockets Plug	Plastic	Thermoplastic	C	Gold	IP68 - Dust Tight Waterproof			-40 °C	105 ░C						10 A	300 VDC	Crimp
Amphenol LTW CB-04BFFA-QL8MN0	Keyed	Unshielded	Thermoplastic		Backshell	Free Hanging (In-Line)		4	Plug Housing	Plastic		C		IP68 - Dust Tight Waterproof	Contacts Not Included	For Female Sockets	-40 °C	105 ░C	Crimp	Circular	Black
Amphenol LTW CB-04BFFA-QL8AN0	Keyed	Unshielded	Thermoplastic		Backshell	Free Hanging (In-Line)		4	Plug Housing	Plastic		C		IP68 - Dust Tight Waterproof	Contacts Not Included	For Female Sockets	-40 °C	105 ░C	Crimp	Circular	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.23
		10	$ 8.18
		30	$ 7.87
		50	$ 7.55
		100	$ 7.39

Description

General part information

CB-04BFFA Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
