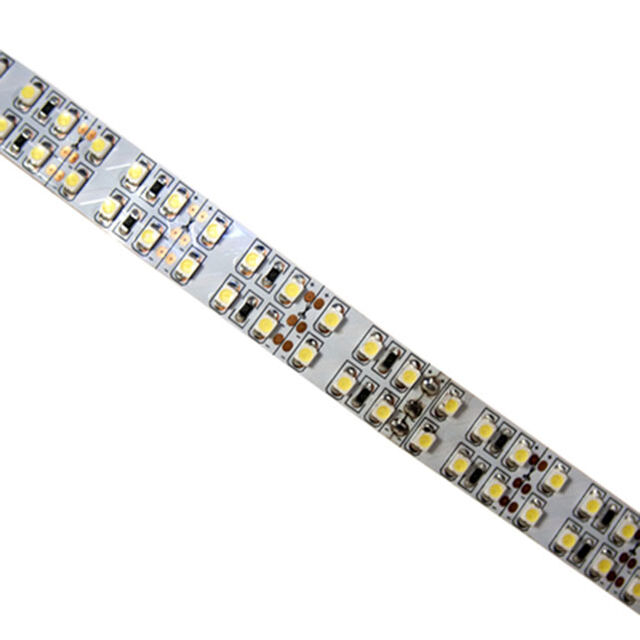

ZFS-155000-24CW

Active

JKL Components Corp.

LED MOD WH LNR LGT STRP 5000K 5M

Search across all available documentation for this part.

Active

JKL Components Corp.

LED MOD WH LNR LGT STRP 5000K 5M

Technical Specifications

Parameters and characteristics for this part

Specification	ZFS-155000-24CW

CCT (K)	5000 K
Color	Cool, White
Configuration	Linear Light Strip, Flexible
Current - Test	3.4 A
Lens Type	Flat
Lumens/Watt @ Current - Test	85 lm/W
Luminous Flux @ Current/Temperature	6925 lm
Size / Dimension [x]	5000 mm
Size / Dimension [y]	15 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	24 V

Part	CCT (K)	Current - Max [Max]	Color	Voltage - Forward (Vf) (Typ)	Current - Test	Viewing Angle	Features	Type	Size / Dimension [custom]	Size / Dimension [y]	Size / Dimension [x]	Configuration	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Lens Type
JKL Components Corp. ZFS-155000-CW	6500 K	4.3 A	Cool White	12 V	4.3 A	120 °	With Connector	LED Engine	25 mm	15 mm	5000 mm	Flexible Linear Light Strip
JKL Components Corp. ZFS-155000-24CW	5000 K		Cool White	24 V	3.4 A	120 °		LED Module		15 mm	5000 mm	Flexible Linear Light Strip	6925 lm	85 lm/W	Flat

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Linear Light Strip, Flexible
