C2426A.41.10

Active

Prysmian Group

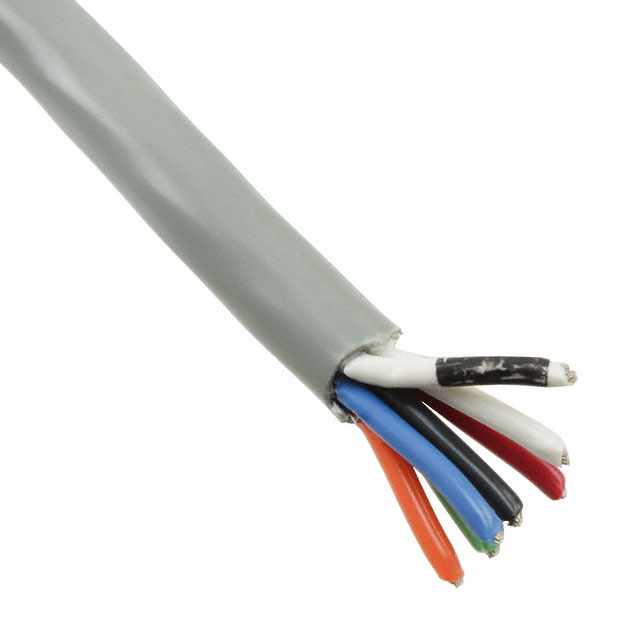

CABLE 7COND 16AWG GRAY 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 7COND 16AWG GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C2426A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	9.22 mm
Jacket (Insulation) Diameter [diameter]	0.363 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Usage	Control, Communication
Voltage	300 V
Wire Gauge	16 AWG

Part	Length	Length [x]	Length [x]	Conductor Material	Number of Conductors	Jacket Color	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Cable Type	Length	Wire Gauge	Ratings	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]
Prysmian Group C2426A.41.10	15.24 m 304.8 m	50 ft 100 ft	30.5 m	Copper Annealed Tinned	7	Gray	Communication Control	9.22 mm	0.363 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Multi-Conductor	1000 ft	16 AWG	ASTM B-33	300 V	-20 C	80 C	19	0.0117 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Conductor Multi-Conductor Cable Gray 16 AWG 50.00' (15.24m)

Technical documentation and resources

No documents available
