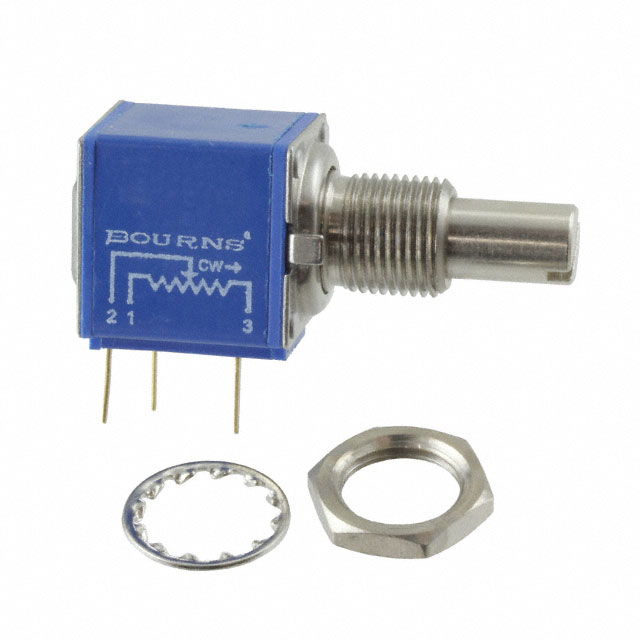

83A1A-B24-J18L
ActiveBourns Inc.
POT 50K OHM 1W WIREWOUND LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
83A1A-B24-J18L
ActiveBourns Inc.
POT 50K OHM 1W WIREWOUND LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 83A1A-B24-J18L |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Diameter [diameter] | 0.25 in |
| Actuator Length [z] | 19.05 mm |
| Actuator Length [z] | 0.75 in |
| Actuator Type | Slotted |
| Adjustment Type | Side Adjustment |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Power (Watts) | 1 W |
| Resistance (Ohms) | 50 kOhms |
| Resistive Material | Wirewound |
| Rotation | 3600 ° |
| Size - Body [x] | 0.625 in |
| Size - Body [x] | 15.88 mm |
| Size - Body [y] | 15.88 mm |
| Size - Body [y] | 0.625 in |
| Taper | Linear |
| Temperature Coefficient | 50 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
83A1A Series
50k Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 1W PC Pins
