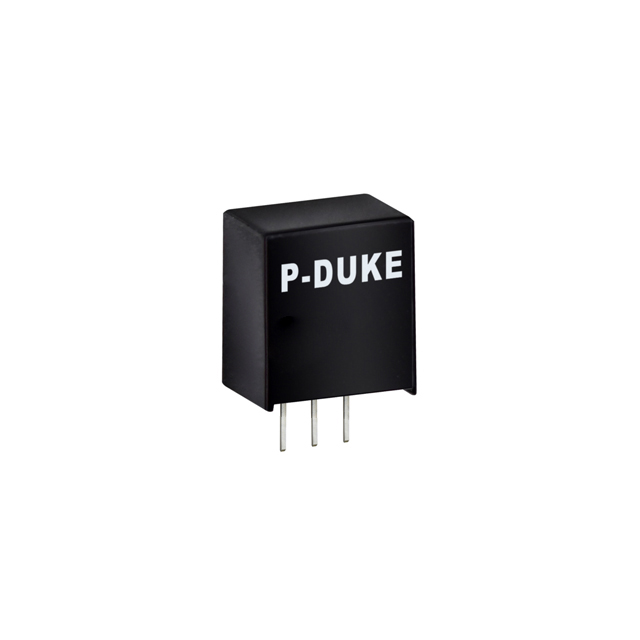

HSRP6-48S15

Active

P-DUKE Technology

DC DC CONVERTER 15V 9W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 15V 9W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 15V 600mA 20V - 72V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 9V 5.4W

Part	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Voltage - Input (Min) [Min]	Number of Outputs	Mounting Type	Voltage - Output 1	Current - Output (Max) [Max]	Type	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Efficiency	Applications
P-DUKE Technology HSRP6-48S09	3-SIP Module	8.6 mm	12 mm	13.4 mm	0.34 in	0.47 in	0.53 "	CE	14 V	1	Through Hole	9 V	600 mA	Non-Isolated PoL Module	72 V	-40 °C	105 C	5.4 W	92 %	ITE (Commercial)
P-DUKE Technology HSRP6-48S15	3-SIP Module	8.6 mm	12 mm	13.4 mm	0.34 in	0.47 in	0.53 "	CE	20 V	1	Through Hole	15 V	600 mA	Non-Isolated PoL Module	72 V	-40 °C	105 C	9 W	94 %	ITE (Commercial)
P-DUKE Technology HSRP6-48S05	3-SIP Module	8.6 mm	12 mm	13.4 mm	0.34 in	0.47 in	0.53 "	CE	9 V	1	Through Hole	5 V	600 mA	Non-Isolated PoL Module	72 V	-40 °C	105 C	3 W	89 %	ITE (Commercial)
