L1RX-GRN1000000000

Active

Lumileds

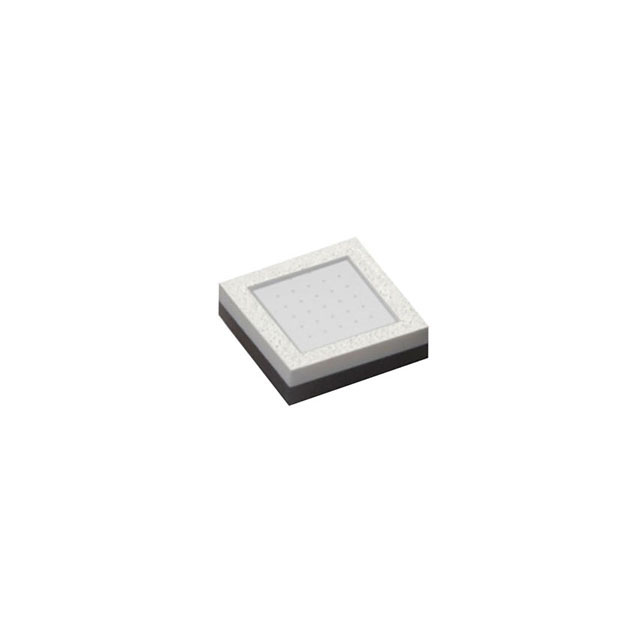

LED SINGLE CHIP GREEN 535NM 300MA 2-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L1RX-GRN1000000000

Active

Lumileds

LED SINGLE CHIP GREEN 535NM 300MA 2-PIN SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.58
		10	$ 1.87
		100	$ 1.44
		500	$ 1.25
	Digi-Reel®	1	$ 2.58
		10	$ 1.87
		100	$ 1.44
		500	$ 1.25
	Tape & Reel (TR)	1000	$ 1.19
		2000	$ 1.14
		3000	$ 1.12
		5000	$ 1.09
		7000	$ 1.07

Description

General part information

L1RX Series

LED Lighting Color LUXEON Rubix Color Green 528nm 0505 (1313 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L1RX-GRN1000000000	L1RX Series

CCT (K)	-	2200 - 6500 K
Color	Green	Green, Cyan, Cool, White, Warm, Lime, Amber, Red
CRI (Color Rendering Index)	-	70 - 90
Current - Max [Max]	3 A	1.6 - 3 A
Current - Test	1.5 A	1 - 1.5 A
Flux @ 85°C, Current - Test	-	185 - 295 lm
Height - Seated (Max) [Max] [z]	0.93 mm	0.93 mm
Height - Seated (Max) [Max] [z]	0.037 "	0.037 "
Lumens/Watt @ Current - Test	50 lm/W	23 - 110 lm/W
Luminous Flux @ Current/Temperature	285 lm	80 - 510 lm
Luminous Flux @ Current/Temperature	-	85 lm
Luminous Flux @ Current/Temperature	-	75 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	0505	0505
Package / Case	1313 Metric	1313 Metric
Size / Dimension [x]	0.055 in	0.055 in
Size / Dimension [x]	1.4 mm	1.4 mm
Size / Dimension [y]	0.055 in	0.055 in
Size / Dimension [y]	1.4 mm	1.4 mm
Supplier Device Package	1414	1414
Temperature - Test	85 °C	85 °C
Viewing Angle	125 °	125 °
Voltage - Forward (Vf) (Typ)	3.8 V	2.3 - 3.8 V
Wavelength	528 nm	500 - 625 nm

L1RX Series

LED SINGLE CHIP GREEN 535NM 300MA 2-PIN SMD T/R

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Viewing Angle	Package / Case	Package / Case	Wavelength	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Mounting Type	Luminous Flux @ Current/Temperature	Temperature - Test	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Lumens/Watt @ Current - Test	Color	Current - Test	CCT (K)	CRI (Color Rendering Index)	Flux @ 85°C, Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Lumileds L1RX-GRN1000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric	528 nm	0.93 mm	0.037 "	3 A	Surface Mount	285 lm	85 °C	3.8 V	1414	50 lm/W	Green	1.5 A
Lumileds L1RX-CYN1000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric	500 nm	0.93 mm	0.037 "	3 A	Surface Mount	230 lm	85 °C	3.64 V	1414	42 lm/W	Cyan	1.5 A
Lumileds L1RX-6580000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric		0.93 mm	0.037 "	1.6 A	Surface Mount			3.04 V	1414	97 lm/W	Cool, White	1 A	6500 K	80	295 lm
Lumileds L1RX-2790000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric		0.93 mm	0.037 "	1.6 A	Surface Mount			3.04 V	1414	61 lm/W	Warm, White	1 A	2700 K	90	185 lm
Lumileds L1RX-LME1000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric		0.93 mm	0.037 "	3 A	Surface Mount	510 lm	85 °C	3.09 V	1414	110 lm/W	Lime	1.5 A
Lumileds L1RX-PCA1000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric		0.93 mm	0.037 "	3 A	Surface Mount	250 lm	85 °C	3.04 V	1414	55 lm/W	Amber	1.5 A
Lumileds L1RX-6570000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric		0.93 mm	0.037 "	1.6 A	Surface Mount			3.04 V	1414	97 lm/W	Cool, White	1 A	6500 K	70	295 lm
Lumileds L1RX-RED1000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric	625 nm	0.93 mm	0.037 "	2.2 A	Surface Mount	80 lm	85 °C	2.3 V	1414	23 lm/W	Red	1.5 A				85 lm	75 lm
Lumileds L1RX-2280000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric		0.93 mm	0.037 "	1.6 A	Surface Mount			3.04 V	1414	63 lm/W	Warm, White	1 A	2200 K	80	190 lm
Lumileds L1RX-3080000000000	0.055 in	1.4 mm	0.055 in	1.4 mm	125 °	0505	1313 Metric		0.93 mm	0.037 "	1.6 A	Surface Mount			3.04 V	1414	81 lm/W	Warm, White	1 A		80	245 lm
