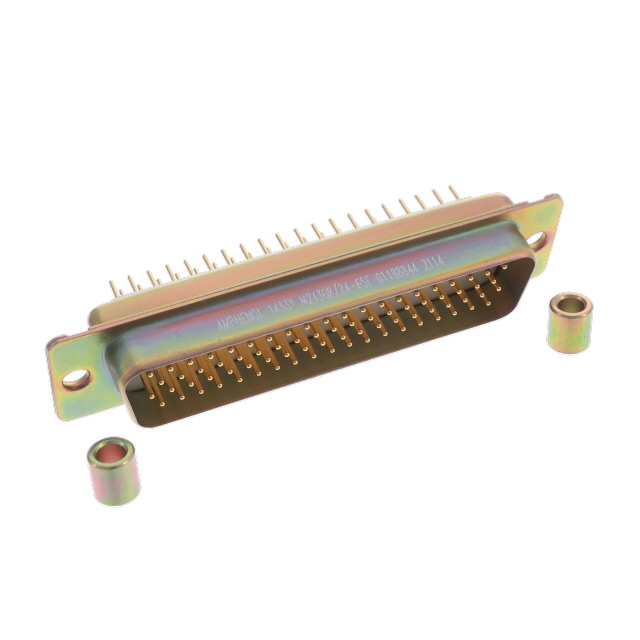

M24308/24-65F
ActiveAmphenol Interconnect India
DSUB CONN,STRAIGHT, PLUG, CADMIU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M24308/24-65F | M24308/24 Series |
|---|---|---|
| Backset Spacing | - | 0.283 in |
| Backset Spacing | - | 7.2 mm |
| Color | Natural | Natural |
| Connector Style | High Density, D-Sub | D-Sub, High Density |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 5 A | 5 - 7.5 A |
| Dielectric Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Features | - | Mounting Brackets |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 78 | 9 - 78 |
| Number of Rows | - | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Yellow Cadmium Plated, Steel | Yellow Cadmium Plated, Steel |
| Shell Size, Connector Layout | - | DE, E, DB, B |
| Shell Size, Connector Layout | - | 1 - 3 |
| Termination | Solder | Solder |
| Wire Gauge [Max] | 28 AWG | 26 - 28 AWG |
| Wire Gauge [Min] | 22 AWG | 20 - 22 AWG |
M24308/24 Series
DSUB CONN,R/ANGLE, PLUG, CADMIUM
| Part | Flange Feature | Backset Spacing | Backset Spacing | Number of Rows | Connector Type | Current Rating (Amps) | Number of Positions | Contact Finish | Material Flammability Rating | Features | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Style | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Type | Shell Material, Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Interconnect India M24308/24-31F | Housing/Shell (Unthreaded) | 0.283 in | 7.2 mm | 2 | Male Pins, Plug | 7.5 A | 9 | Gold | UL94 V-0 | Mounting Brackets | Polyester, Glass Filled | DE, E | 1 | Solder | -55 °C | 125 °C | Natural | D-Sub | Panel Mount, Right Angle, Through Hole | 20 AWG | 26 AWG | Signal | Steel, Yellow Cadmium Plated | Copper Alloy |
Amphenol Interconnect India M24308/24-25F | Housing/Shell (Unthreaded) | 0.283 in | 7.2 mm | 2 | Male Pins, Plug | 7.5 A | 9 | Gold | UL94 V-0 | Mounting Brackets | Polyester, Glass Filled | DE, E | 1 | Solder | -55 °C | 125 °C | Natural | D-Sub | Panel Mount, Right Angle, Through Hole | 20 AWG | 26 AWG | Signal | Steel, Yellow Cadmium Plated | Copper Alloy |
Amphenol Interconnect India M24308/24-33F | Housing/Shell (Unthreaded) | 0.283 in | 7.2 mm | 2 | Male Pins, Plug | 7.5 A | Gold | UL94 V-0 | Mounting Brackets | Polyester, Glass Filled | B, DB | 3 | Solder | -55 °C | 125 °C | Natural | D-Sub | Panel Mount, Right Angle, Through Hole | 20 AWG | 26 AWG | Signal | Steel, Yellow Cadmium Plated | Copper Alloy | |
Amphenol Interconnect India M24308/24-65F | Housing/Shell (Unthreaded) | Male Pins, Plug | 5 A | 78 | Gold | UL94 V-0 | Polyester, Glass Filled | Solder | -55 °C | 125 °C | Natural | D-Sub, High Density | Panel Mount, Through Hole | 22 AWG | 28 AWG | Signal | Steel, Yellow Cadmium Plated | Copper Alloy |
