M24308/24-33F

Unknown

Amphenol Interconnect India

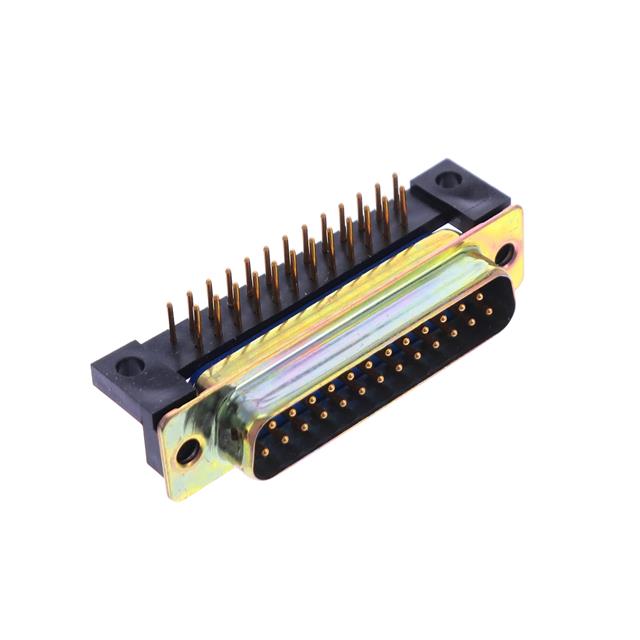

DSUB CONN,R/ANGLE, PLUG, CADMIUM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/24-33F

Unknown

Amphenol Interconnect India

DSUB CONN,R/ANGLE, PLUG, CADMIUM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 97.21
		10	$ 75.63
		25	$ 68.80
		50	$ 64.19
		100	$ 60.03
	Tray	25	$ 35.63

Description

General part information

M24308/24 Series

25 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M24308/24-33F	M24308/24 Series

Backset Spacing	0.283 in	0.283 in
Backset Spacing	7.2 mm	7.2 mm
Color	Natural	Natural
Connector Style	D-Sub	D-Sub, High Density
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	7.5 A	5 - 7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Features	Mounting Brackets	Mounting Brackets
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	-	9 - 78
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel	Yellow Cadmium Plated, Steel
Shell Size, Connector Layout [custom]	DB, B	DE, E, DB, B
Shell Size, Connector Layout [custom]	3	1 - 3
Termination	Solder	Solder
Wire Gauge [Max]	26 AWG	26 - 28 AWG
Wire Gauge [Min]	20 AWG	20 - 22 AWG

M24308/24 Series

DSUB CONN,R/ANGLE, PLUG, CADMIUM

Part	Flange Feature	Backset Spacing	Backset Spacing	Number of Rows	Connector Type	Current Rating (Amps)	Number of Positions	Contact Finish	Material Flammability Rating	Features	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Style	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Shell Material, Finish	Contact Material
Amphenol Interconnect India M24308/24-31F	Housing/Shell (Unthreaded)	0.283 in	7.2 mm	2	Male Pins, Plug	7.5 A	9	Gold	UL94 V-0	Mounting Brackets	Polyester, Glass Filled	DE, E	1	Solder	-55 °C	125 °C	Natural	D-Sub	Panel Mount, Right Angle, Through Hole	20 AWG	26 AWG	Signal	Steel, Yellow Cadmium Plated	Copper Alloy
Amphenol Interconnect India M24308/24-25F	Housing/Shell (Unthreaded)	0.283 in	7.2 mm	2	Male Pins, Plug	7.5 A	9	Gold	UL94 V-0	Mounting Brackets	Polyester, Glass Filled	DE, E	1	Solder	-55 °C	125 °C	Natural	D-Sub	Panel Mount, Right Angle, Through Hole	20 AWG	26 AWG	Signal	Steel, Yellow Cadmium Plated	Copper Alloy
Amphenol Interconnect India M24308/24-33F	Housing/Shell (Unthreaded)	0.283 in	7.2 mm	2	Male Pins, Plug	7.5 A		Gold	UL94 V-0	Mounting Brackets	Polyester, Glass Filled	B, DB	3	Solder	-55 °C	125 °C	Natural	D-Sub	Panel Mount, Right Angle, Through Hole	20 AWG	26 AWG	Signal	Steel, Yellow Cadmium Plated	Copper Alloy
Amphenol Interconnect India M24308/24-65F	Housing/Shell (Unthreaded)				Male Pins, Plug	5 A	78	Gold	UL94 V-0		Polyester, Glass Filled			Solder	-55 °C	125 °C	Natural	D-Sub, High Density	Panel Mount, Through Hole	22 AWG	28 AWG	Signal	Steel, Yellow Cadmium Plated	Copper Alloy
