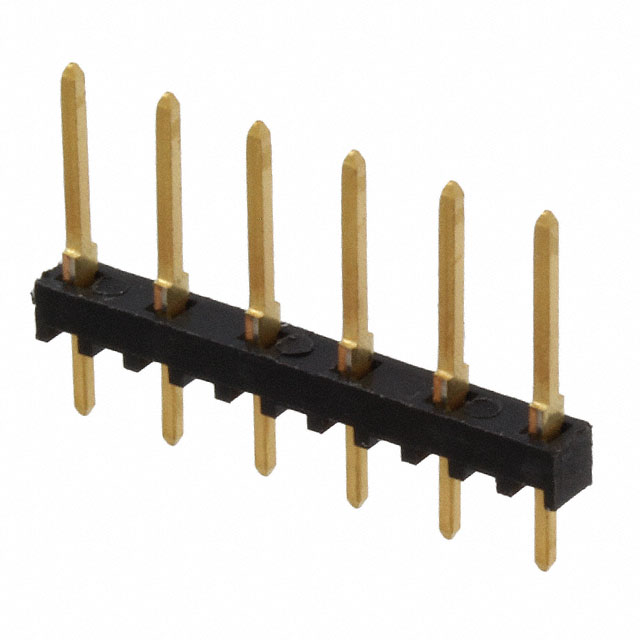

Specification	87221-5

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Post (string_set)	Flash
Contact Length - Mating	0.318 in
Contact Length - Post	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Glass Filled, Thermoplastic
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.15 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

AMPMODU Headers Series

...

Part	Contact Finish Thickness - Post (Mating)	Pitch	Mounting Type	Length - Tail	Number of Positions	Length - Overall Pin	Length - Post (Mating)	Length - Stack Height	Color	Contact Finish - Post (Mating)	Termination	Number of Rows	Style	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Contact Shape	Insulation Color	Contact Length - Mating	Contact Finish - Post	Contact Finish - Mating	Contact Length - Post	Row Spacing - Mating	Shrouding	Contact Type	Fastening Type	Number of Positions Loaded	Pitch - Mating	Insulation Height	Material Flammability Rating	Connector Type	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Overall Contact Length	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 4-146468-0	100 µin	0.1 in	Through Hole	0.11 in	40	1.03 in	0.12 in	0.8 in	Black	Tin-Lead	Solder	1
TE Connectivity AMP Connectors 5-103330-5			Right Angle Through Hole		10						Solder	2	Board Board or Cable	100 µin	Thermoplastic	Copper Alloy	Square	Black	0.23 in	Tin	Tin	0.12 in	0.1 in	Unshrouded	Male Pin	Push-Pull	All	0.1 in	0.238 in	UL94 V-0	Breakaway Header	3 A	105 °C	-65 °C
TE Connectivity AMP Connectors 87230-2			Right Angle Through Hole		4						Solder	2	Board Board or Cable	15 µin	Thermoplastic	Phosphor Bronze	Square	Black	0.318 in	Gold	Gold	0.11 in	0.1 in	Unshrouded	Male Pin	Push-Pull	All	0.1 in	0.238 in	UL94 V-0	Header	3 A	105 °C	-65 °C	Flash	Flash
TE Connectivity AMP Connectors 828214-4			Through Hole		4						Solder	1	Board Board or Cable	78.7 Ąin	Polybutylene Terephthalate (PBT)	Copper Alloy	Square	Green	0.264 in	Tin	Tin	0.126 in		Unshrouded	Male Pin	Push-Pull	All	0.1 in	0.11 in	UL94 V-0	Breakaway Header						0.5 in	78.7 µin
TE Connectivity AMP Connectors 2-102618-3			Through Hole		50						Solder	2	Board Board or Cable	15 µin	Thermoplastic	Phosphor Bronze	Square	Black	0.318 in	Tin-Lead	Gold	0.125 in	0.1 in	Shrouded - 4 Wall	Male Pin	Detent Lock	All	0.1 in	0.44 in	UL94 V-0	Header	3 A	105 °C	-65 °C			0.533 in
TE Connectivity AMP Connectors 6-102617-3			Right Angle Through Hole		30						Solder	2	Board Board or Cable	15 µin	Thermoplastic	Phosphor Bronze	Square	Black	0.318 in	Tin	Gold	0.135 in	0.1 in	Shrouded - 4 Wall	Male Pin	Detent Lock	All	0.1 in	0.4 in	UL94 V-0	Header	3 A	105 °C	-65 °C
TE Connectivity AMP Connectors 826652-9			Right Angle Through Hole		9						Solder	1	Board Board or Cable	3.9 µin	Polybutylene Terephthalate (PBT)	Brass	Square	Green	0.228 in	Tin	Gold	0.126 in		Unshrouded	Male Pin	Push-Pull	All	0.1 in	0.12 in	UL94 V-0	Breakaway Header	5 A	105 °C	-65 °C				118.1 µin
TE Connectivity AMP Connectors 5-102570-5			Right Angle Through Hole		14						Solder	2	Board Board or Cable	15 µin	Thermoplastic	Phosphor Bronze	Square	Black	0.318 in	Tin	Gold	0.135 in	0.1 in	Shrouded - 4 Wall	Male Pin	Detent Lock	All	0.1 in	0.4 in	UL94 V-0	Header	3 A	105 °C	-65 °C
TE Connectivity AMP Connectors 1-826662-0			Right Angle Through Hole		20						Solder	2	Board Board or Cable	3.9 µin	Polybutylene Terephthalate (PBT)	Brass	Square	Green	0.228 in	Tin	Gold	0.126 in	0.1 in	Unshrouded	Male Pin	Push-Pull	All	0.1 in	0.219 in	UL94 V-0	Breakaway Header	5 A	105 °C	-65 °C
TE Connectivity AMP Connectors 5-146254-8			Through Hole		16						Solder	2	Board Board or Cable	100 µin	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	Black	0.23 in	Tin	Tin	0.12 in	0.1 in	Unshrouded	Male Pin	Push-Pull	All	0.1 in	0.09 in	UL94 V-0	Breakaway Header	3 A	105 °C	-65 °C			0.44 in	100 Ąin
