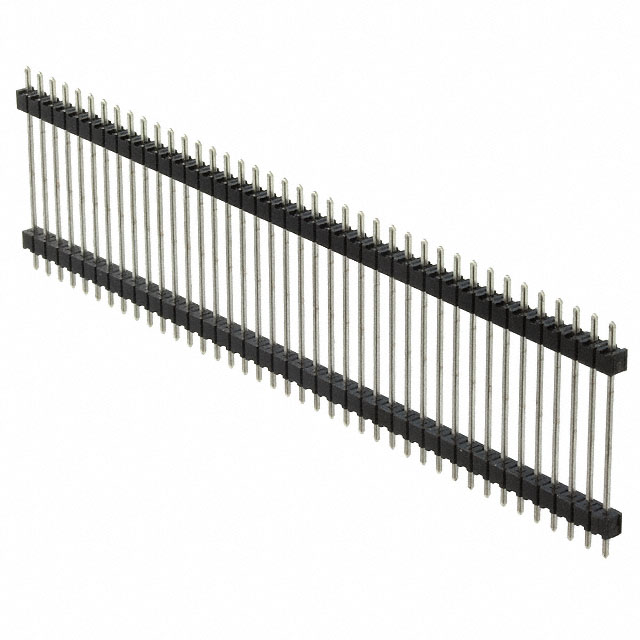

4-146468-0

Active

TE Connectivity Raychem Cable Protection

40 MODII HDR SRST UNSHRD STKG ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4-146468-0

Active

TE Connectivity Raychem Cable Protection

40 MODII HDR SRST UNSHRD STKG ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4-146468-0

Color	Black
Contact Finish - Post (Mating)	Tin-Lead
Contact Finish Thickness - Post (Mating)	2.54 Ám
Contact Finish Thickness - Post (Mating)	100 Áin
Length - Overall Pin [x]	1.03 in
Length - Overall Pin [x]	26.162 mm
Length - Post (Mating) [x]	3.05 mm
Length - Post (Mating) [x]	0.12 in
Length - Stack Height [x]	20.32 mm
Length - Stack Height [x]	0.8 in
Length - Tail	2.8 mm
Length - Tail	0.11 in
Mounting Type	Through Hole
Number of Positions	40
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

AMPMODU MOD II Series

Headers & Wire Housings 40 MODII HDR SRST B/A 100 W/HD

...

Part	Contact Finish - Post (Mating)	Color	Number of Rows	Length - Tail	Length - Tail	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Insulation Material	Connector Type	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Fastening Type	Insulation Color	Contact Material	Shrouding	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Shape	Contact Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating
TE Connectivity Raychem Cable Protection 4-146468-0	Tin-Lead	Black	1	2.8 mm	0.11 in	1.03 in	26.162 mm	Solder	40	2.54 Ám	100 Áin	2.54 mm	0.1 in	3.05 mm	0.12 in	Through Hole	20.32 mm	0.8 in
TE Connectivity Raychem Cable Protection 4-103795-0-18			2					Solder	36							Through Hole Right Angle			Thermoplastic	Breakaway Header	0.23 in	5.84 mm	All	-65 ░C	105 ░C	UL94 V-0	3 A	2.54 mm	0.1 in	Board to Board Cable	Push-Pull	Black	Copper Alloy	Unshrouded	0.1 in	2.54 mm	6.05 mm	0.238 in	Tin-Lead	Square	Male Pin	Tin-Lead	2.54 µm	100 µin	0.09 "	2.29 mm	2.54 çm	100 çin
TE Connectivity Raychem Cable Protection 4-103795-0-11			2					Solder	22 positions							Through Hole Right Angle			Thermoplastic	Breakaway Header	0.23 in	5.84 mm	All	-65 ░C	105 ░C	UL94 V-0	3 A	2.54 mm	0.1 in	Board to Board Cable	Push-Pull	Black	Copper Alloy	Unshrouded	0.1 in	2.54 mm	6.05 mm	0.238 in	Tin-Lead	Square	Male Pin	Tin-Lead	2.54 µm	100 µin	0.09 "	2.29 mm	2.54 çm	100 çin
TE Connectivity Raychem Cable Protection 9-103795-0-11			2					Solder	22 positions							Through Hole Right Angle			Thermoplastic	Breakaway Header	0.23 in	5.84 mm	All	-65 ░C	105 ░C	UL94 V-0	3 A	2.54 mm	0.1 in	Board to Board Cable	Push-Pull	Black	Copper Alloy	Unshrouded	0.1 in	2.54 mm	6.05 mm	0.238 in		Square	Male Pin	Tin	2.54 µm	100 µin	0.09 "	2.29 mm	2.54 çm	100 çin
TE Connectivity Raychem Cable Protection 4-103795-0-27			2					Solder	54							Through Hole Right Angle			Thermoplastic	Breakaway Header	0.23 in	5.84 mm	All	-65 ░C	105 ░C	UL94 V-0	3 A	2.54 mm	0.1 in	Board to Board Cable	Push-Pull	Black	Copper Alloy	Unshrouded	0.1 in	2.54 mm	6.05 mm	0.238 in	Tin-Lead	Square	Male Pin	Tin-Lead	2.54 µm	100 µin	0.09 "	2.29 mm	2.54 çm	100 çin
TE Connectivity Raychem Cable Protection 104352-2			2					Press-Fit Solder	4							Through Hole				Breakaway Header	0.23 in	5.84 mm	All	-65 ░C	105 ░C	UL94 V-0	3 A	2.54 mm	0.1 in	Board to Board Cable	Push-Pull	Black		Unshrouded	0.1 in	2.54 mm	2.29 mm	0.09 in	Tin-Lead	Square	Male Pin	Tin-Lead	2.54 µm	100 µin			2.54 çm	100 çin	0.44 in	11.18 mm	0.12 in	3.05 mm	30 VAC
TE Connectivity Raychem Cable Protection 2-146468-6	Tin-Lead	Black	1	2.8 mm	0.11 in	1.03 in	26.162 mm	Solder	26	2.54 Ám	100 Áin	2.54 mm	0.1 in	3.05 mm	0.12 in	Through Hole	20.32 mm	0.8 in
TE Connectivity Raychem Cable Protection 9-103795-0-13			2					Solder	26							Through Hole Right Angle			Thermoplastic	Breakaway Header	0.23 in	5.84 mm	All	-65 ░C	105 ░C	UL94 V-0	3 A	2.54 mm	0.1 in	Board to Board Cable	Push-Pull	Black	Copper Alloy	Unshrouded	0.1 in	2.54 mm	6.05 mm	0.238 in		Square	Male Pin	Tin	2.54 µm	100 µin	0.09 "	2.29 mm	2.54 çm	100 çin
TE Connectivity Raychem Cable Protection 9-103795-0-36			2					Solder	72							Through Hole Right Angle			Thermoplastic	Breakaway Header	0.23 in	5.84 mm	All	-65 ░C	105 ░C	UL94 V-0	3 A	2.54 mm	0.1 in	Board to Board Cable	Push-Pull	Black	Copper Alloy	Unshrouded	0.1 in	2.54 mm	6.05 mm	0.238 in		Square	Male Pin	Tin	2.54 µm	100 µin	0.09 "	2.29 mm	2.54 çm	100 çin
TE Connectivity Raychem Cable Protection 1-146468-4	Tin-Lead	Black	1	2.8 mm	0.11 in	1.03 in	26.162 mm	Solder	14	2.54 Ám	100 Áin	2.54 mm	0.1 in	3.05 mm	0.12 in	Through Hole	20.32 mm	0.8 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1250	$ 7.08
Newark	Each	500	$ 6.82

Description

General part information

AMPMODU MOD II Series

Headers & Wire Housings 40 MODII HDR SRST B/A 100 W/HD
