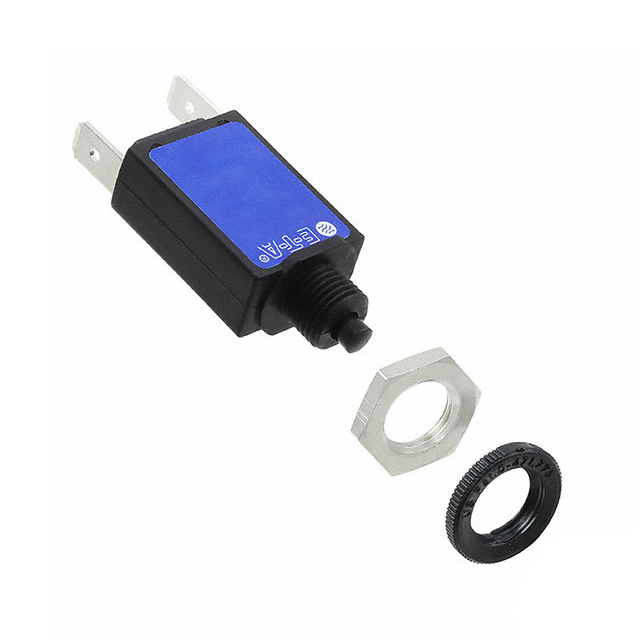

106-M2-P10-8A

Active

E-T-A

CIRCUIT BREAKERS MINIATURISED SINGLE POLE THERMAL CIRCUIT BREAKER WITH PUSH-TO-RESET TEASE FREE, TRIP-FREE, SNAP ACTION MECHANISM (R-TYPE TO CBE TO EN 60934), THREADNECK MOUNTING. APPROVED TO CBE STANDARD EN 60934 (IEC 60934). FOR HIGHER CURRENT RATINGS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

106-M2-P10-8A

Active

E-T-A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	106-M2-P10-8A	106-M2 Series

Actuator Type	Push to Reset	Push to Reset
Approval Agency	IEC 60934, CE, CSA C22.2 No 235, GB 17701, UL1077	IEC 60934, CE, CSA C22.2 No 235, GB 17701, UL1077
Breaker Type	Thermal	Thermal
Current Rating (Amps)	8 A	3.5 - 8 A
Number of Poles	1	1
Voltage Rating - AC	240 V	240 V
Voltage Rating - DC	48 V	48 V

106-M2 Series

Circuit Breakers Miniaturised single pole thermal circuit breaker with push-to-reset tease free, trip-free, snap action mechanism (R-type TO CBE to EN 60934), threadneck mounting. Approved to CBE standard EN 60934 (IEC 60934). For higher current ratings

Part	Voltage Rating - AC	Current Rating (Amps)	Voltage Rating - DC	Actuator Type	Approval Agency	Breaker Type	Number of Poles
E-T-A 106-M2-P30-3.5A	240 V	3.5 A	48 V	Push to Reset	CE, CSA C22.2 No 235, GB 17701, IEC 60934, UL1077	Thermal	1
E-T-A 106-M2-P10-8A	240 V	8 A	48 V	Push to Reset	CE, CSA C22.2 No 235, GB 17701, IEC 60934, UL1077	Thermal	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.02
		5	$ 18.35
		10	$ 16.96
		50	$ 14.10
		100	$ 13.02
		250	$ 11.70
		500	$ 10.79
Sager	N/A	1	$ 14.25
		29	$ 13.79
		174	$ 8.58
		348	$ 8.33
		870	$ 8.10
		1739	$ 7.88
		3478	$ 7.77
