1-321828-0
ActiveTE Connectivity AMP Connectors
CONN RING D-SHAPE 12-14AWG #10
1-321828-0
ActiveTE Connectivity AMP Connectors
CONN RING D-SHAPE 12-14AWG #10
Description
General part information
321828 Series

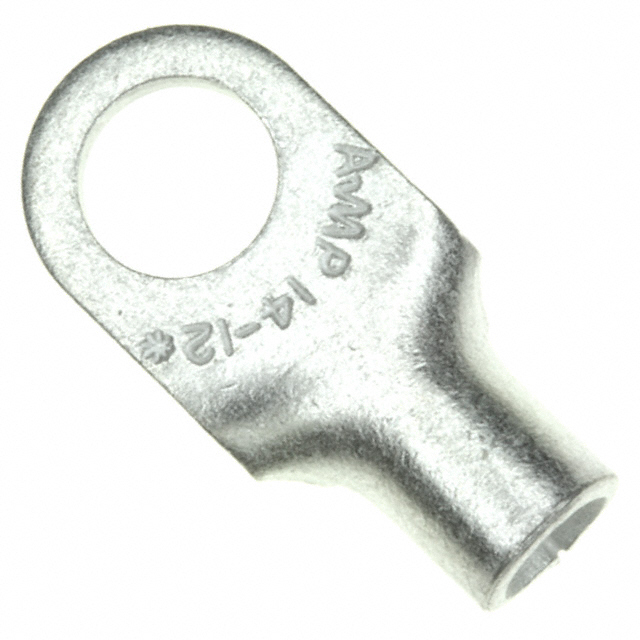

Closed Ring Tongue Terminal, 14 – 12 AWG, #10 Stud, 4.82 mm [.19 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-321828-0 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination, Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.685 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | D-Shaped |
| Termination | Crimp |
| Thickness | 0.038 in |
| Width - Outer Edges | 0.312 in |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
