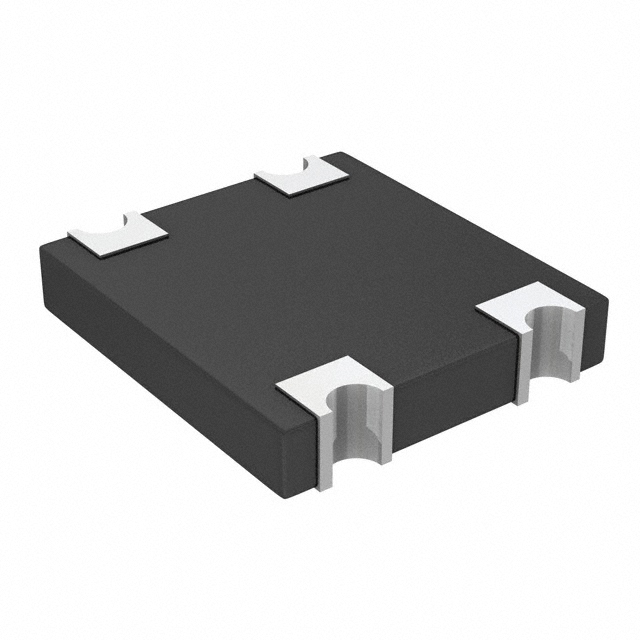

CD2320-B1600

Obsolete

Bourns Inc.

BRIDGE RECT 1PHASE 600V 1A 2320

Search across all available documentation for this part.

Obsolete

Bourns Inc.

BRIDGE RECT 1PHASE 600V 1A 2320

Technical Specifications

Parameters and characteristics for this part

Specification	CD2320-B1600

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Concave Terminals, Chip
Supplier Device Package	2320
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Technology	Diode Type	Mounting Type
Bourns Inc. CD2320-B1600	600 V	2320	1 A	5 µA	-55 °C	175 ░C	Chip Concave Terminals	1 V	Schottky	Single Phase	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Schottky 600 V Surface Mount 2320
