M3DRK-4020K

Active

3M (TC)

IDC CABLE - MKR40K/MC40F/MPR40K

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Ribbon Cable Assembly Length Guide +1

M3DRK-4020K

Active

3M (TC)

IDC CABLE - MKR40K/MC40F/MPR40K

Deep-Dive with AI

Documents1700 Series Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3DRK-4020K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length	508 mm
Length	1.67 ft
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3DRK Series

Part	Pitch - Cable	Pitch - Cable	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Contact Finish	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Length [x]	Length [x]	Connector Type	Features	Color	Length	Length	Length	Length
3M (TC) M3DRK-1018J	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	10	457.2 mm	1.5 ft	Socket to Plug	Polarizing Key Strain Relief
3M (TC) M3DRK-5006R	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	50			Socket to Plug	Polarizing Key Strain Relief	Multiple Ribbon	152.4 mm	6 "	0.5 '
3M (TC) M3DRK-2436R	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	24	914.4 mm	3 ft	Socket to Plug	Polarizing Key Strain Relief	Multiple Ribbon
3M (TC) M3DRK-2018R	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	20	457.2 mm	1.5 ft	Socket to Plug	Polarizing Key Strain Relief	Multiple Ribbon
3M (TC) M3DRK-6036J	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	60	914.4 mm	3 ft	Socket to Plug	Polarizing Key Strain Relief
3M (TC) M3DRK-4018J	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	40	457.2 mm	1.5 ft	Socket to Plug	Polarizing Key Strain Relief
3M (TC) M3DRK-4020K	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	40			Socket to Plug	Polarizing Key Strain Relief	Multiple Twisted Pair (Flat)	508 mm			1.67 ft
3M (TC) M3DRK-3018J	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	30	457.2 mm	1.5 ft	Socket to Plug	Polarizing Key Strain Relief
3M (TC) M3DRK-2606J	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	26			Socket to Plug	Polarizing Key Strain Relief		152.4 mm	6 "	0.5 '
3M (TC) M3DRK-2406J	0.05 "	1.27 mm	2	0.76 Ám	30 Áin	IDC	Gold	0.1 in	2.54 mm	Unshielded	24			Socket to Plug	Polarizing Key Strain Relief		152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.92
		10	$ 31.64
		25	$ 28.70
		50	$ 26.71
		100	$ 24.91
		250	$ 22.79

Description

General part information

M3DRK Series

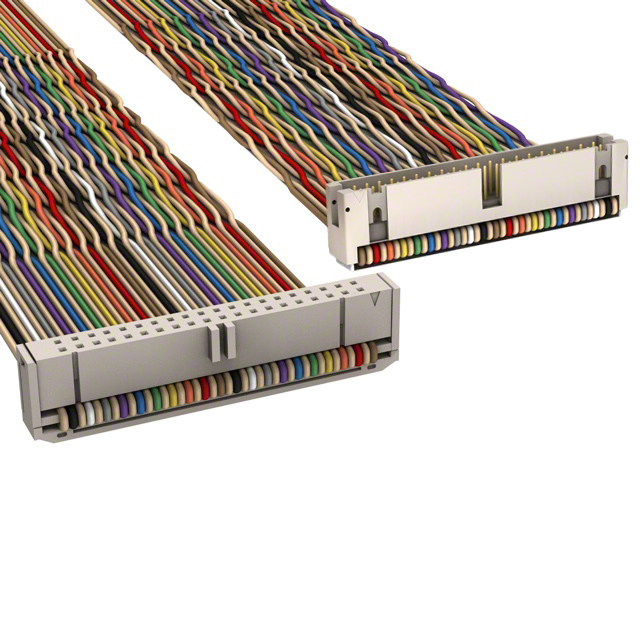

40 Position Cable Assembly Rectangular Socket to Plug 1.67' (508.00mm)

Documents

Technical documentation and resources

1700 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
