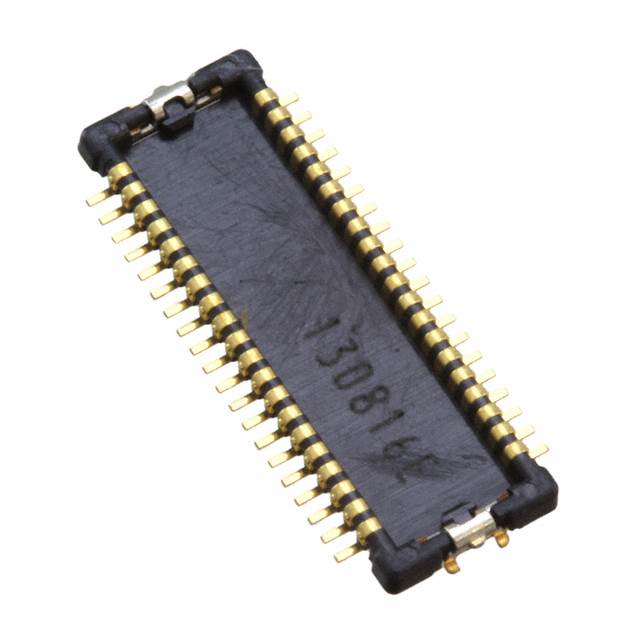

AXK8L40124BG

Obsolete

Panasonic Electric Works

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK8L40124BG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.63 mm
Height Above Board	0.025 in
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Rows	Height Above Board	Height Above Board	Mounting Type	Contact Finish
Panasonic Electric Works AXK8L40124BG	Solder Retention	Header Outer Shroud Contacts	40	0.016 in	0.4 mm	0.9 mm	2	0.63 mm	0.025 in	Surface Mount	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
