341-100-522-207
ActiveEDAC Inc.

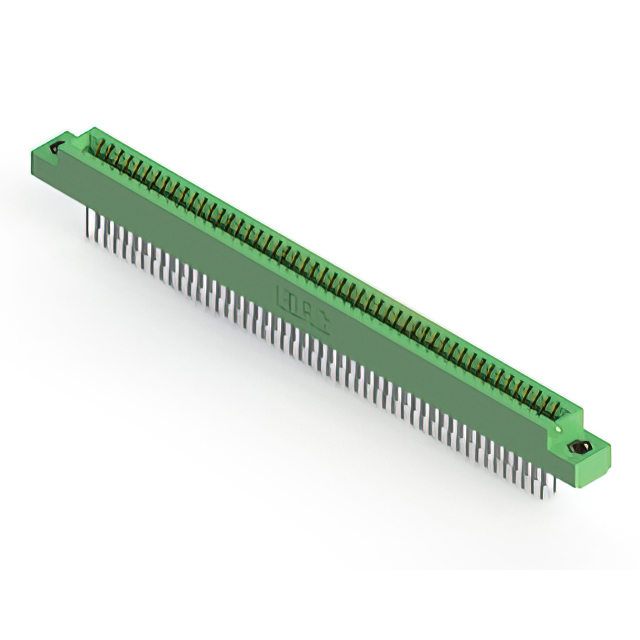

CONN EDGE DUAL FML 100POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-100-522-207
ActiveEDAC Inc.
CONN EDGE DUAL FML 100POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-100-522-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 100 |
| Number of Positions/Bay/Row [custom] | 50 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-100 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Number of Rows | Termination | Gender | Contact Type | Color | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Mounting Type | Contact Material | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Contact Finish | Read Out | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder Eyelet(s) | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Copper Alloy | Diallyl Phthalate (DAP) | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Board Edge Straddle Mount | Copper Alloy | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder Eyelet(s) | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Copper Alloy | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Copper Alloy | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder Eyelet(s) | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Board Edge Straddle Mount | Copper Alloy | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | 50 | 2 | Solder | Female | Semi Bellows | Green | 100 | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Copper Alloy | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2 | Gold | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 20.73 | |
Description
General part information
341-100 Series
100 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
