770968-2

Obsolete

TE Connectivity AMP Connectors

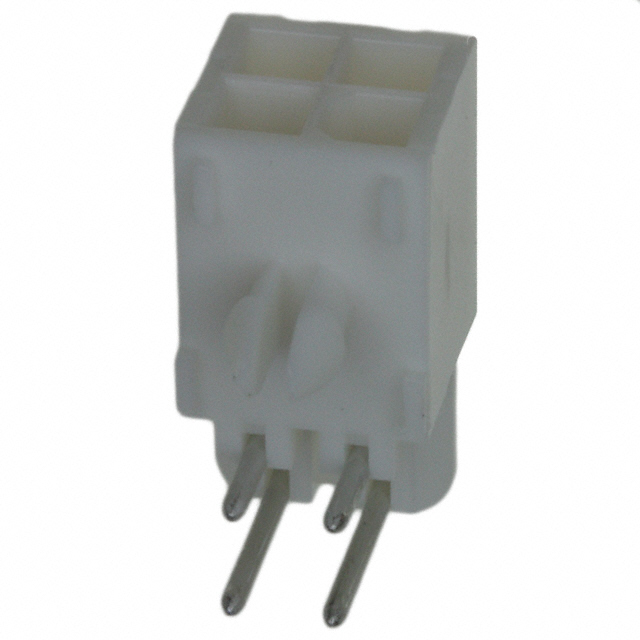

CONN HEADER R/A 4POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

770968-2

Obsolete

TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 4.14MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770968-2	770968 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Tin-Lead, Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	9.8 mm	9.8 mm
Insulation Height	0.386 in	0.386 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

770968 Series

CONN HEADER R/A 4POS 4.14MM

Part	Contact Length - Post	Contact Length - Post	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Material	Fastening Type	Termination	Number of Positions Loaded	Current Rating (Amps)	Insulation Material	Contact Finish - Post	Mounting Type	Number of Positions	Applications	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Insulation Height	Insulation Height	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Voltage Rating	Pitch - Mating	Pitch - Mating	Style	Connector Type	Number of Rows
TE Connectivity AMP Connectors 770968-1	0.145 in	3.68 mm	Male Pin	85 °C	-20 C	UL94 V-0	Brass	Locking Ramp	Solder	All	Varies by Wire Gauge	Nylon, Polyamide (PA)	Tin-Lead	Through Hole, Right Angle	4	General Purpose	Tin-Lead	150 Áin	3.81 Ám	150 Áin	3.81 Ám	Shrouded - 4 Wall	9.8 mm	0.386 in	White	4.14 mm	0.163 in	Circular	600 VAC	4.14 mm	0.163 in	Board to Cable/Wire	Header	2
TE Connectivity AMP Connectors 1-770968-0	0.145 in	3.68 mm	Male Pin	85 °C	-20 C	UL94 V-0	Brass	Locking Ramp	Solder	All	Varies by Wire Gauge	Nylon, Polyamide (PA)	Tin	Through Hole, Right Angle	4	General Purpose		150 Áin	3.81 Ám	150 Áin	3.81 Ám	Shrouded - 4 Wall	9.8 mm	0.386 in	White	4.14 mm	0.163 in	Circular	600 VAC	4.14 mm	0.163 in	Board to Cable/Wire	Header	2
TE Connectivity AMP Connectors 1-770968-1	0.145 in	3.68 mm	Male Pin	105 ░C	-20 C	UL94 V-0	Brass	Locking Ramp	Solder	All	Varies by Wire Gauge	Nylon, Polyamide (PA)	Tin	Through Hole, Right Angle	4	General Purpose	Gold	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Shrouded - 4 Wall	9.8 mm	0.386 in	White	4.14 mm	0.163 in	Circular	600 VAC	4.14 mm	0.163 in	Board to Cable/Wire	Header	2
TE Connectivity AMP Connectors 770968-2	0.145 in	3.68 mm	Male Pin	105 ░C	-20 C	UL94 V-0	Brass	Locking Ramp	Solder	All	Varies by Wire Gauge	Nylon, Polyamide (PA)	Tin-Lead	Through Hole, Right Angle	4	General Purpose	Gold	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Shrouded - 4 Wall	9.8 mm	0.386 in	White	4.14 mm	0.163 in	Circular	600 VAC	4.14 mm	0.163 in	Board to Cable/Wire	Header	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.33
		10	$ 4.67
		200	$ 4.18
		600	$ 3.89
		1000	$ 3.47

Description

General part information

770968 Series

Connector Header Through Hole, Right Angle 4 position 0.163" (4.14mm)
