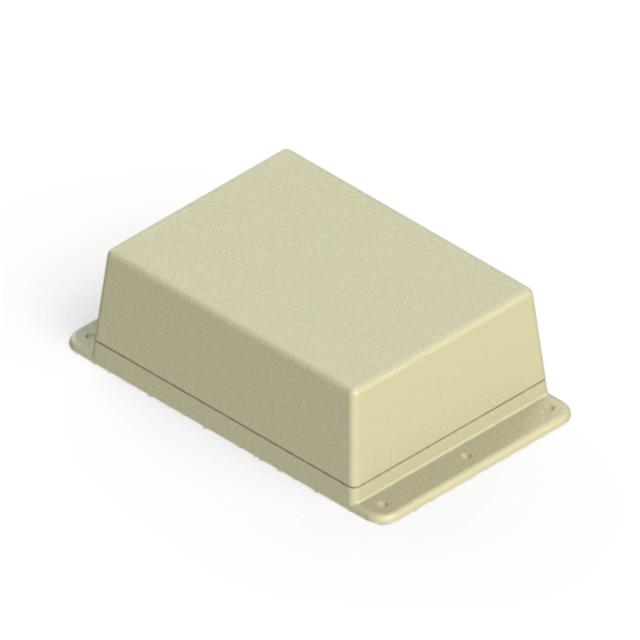

Specification	WM032,AL

Area (L x W)	14.2 in²
Color	Almond
Container Type	Box
Design	Cover Included
Features	PCB Supports, Mounting Flange, Wall Mount
Height	1.6 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	4.38 in
Size / Dimension Width	3.25 in
Thickness	0.1 in
Weight	0.204 lb

WM032 Series

Part	Weight	Thickness	Color	Material Flammability Rating	Material	Area (L x W)	Design	Size / Dimension Width	Size / Dimension Length	Features	Ratings	Height	Container Type
Serpac WM032RI,AL	0.204 lb	0.1 in	Almond	UL94 HB	ABS Plastic	14.2 in²	Cover Included	3.25 in	4.38 in	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
Serpac WM032RC,GY	0.204 lb	0.1 in	Clear Cover/Door Gray		Plastic Polycarbonate Polycarbonate (PC)	14.2 in²	Cover Included	3.25 in	4.38 in	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
Serpac WM032RI,BK	0.204 lb	0.1 in	Black	UL94 HB	ABS Plastic	14.2 in²	Cover Included	3.25 in	4.38 in	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
Serpac WM032,AL	0.204 lb	0.1 in	Almond	UL94 HB	ABS Plastic	14.2 in²	Cover Included	3.25 in	4.38 in	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
Serpac WM032I,BK	0.204 lb	0.1 in	Black	UL94 HB	ABS Plastic	14.2 in²	Cover Included	3.25 in	4.38 in	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
Serpac WM032C,BK	0.204 lb	0.1 in	Black Clear Cover/Door		Plastic Polycarbonate Polycarbonate (PC)	14.2 in²	Cover Included	3.25 in	4.38 in	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
Serpac WM032R,GY	0.204 lb	0.1 in	Gray	UL94 HB	ABS Plastic	14.2 in²	Cover Included	3.25 in	4.38 in	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
Serpac WM032R,AL	0.204 lb	0.1 in	Almond	UL94 HB	ABS Plastic	14.2 in²	Cover Included	3.25 in	4.38 in	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
Serpac WM032RC,AL	0.204 lb	0.1 in	Almond Clear Cover/Door		Plastic Polycarbonate Polycarbonate (PC)	14.2 in²	Cover Included	3.25 in	4.38 in	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
Serpac WM032R,BK	0.204 lb	0.1 in	Black	UL94 HB	ABS Plastic	14.2 in²	Cover Included	3.25 in	4.38 in	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	1.6 in	Box
