50M035060 Series

Part	Screw Head Type	Length - Below Head	Type	Head Diameter	Drive Type	Head Height	Length - Overall	Material	Thread Pitch	Thread Diameter
Essentra Components 50M035060I010	Flat Head	0.303 in	Machine Screw	0.323 in	Phillips	0.091 in	0.394 in	Nylon	0.6 mm	3.5 mm
Essentra Components 50M035060I025	Flat Head	0.894 in	Machine Screw	0.323 in	Phillips	0.091 in	0.984 in	Nylon	0.6 mm	3.5 mm
Essentra Components 50M035060I008	Flat Head	0.224 in	Machine Screw	0.323 in	Phillips	0.091 in	0.315 in	Nylon	0.6 mm	3.5 mm
Essentra Components 50M035060D035	Cheese Head	1.378 in	Bolt	0.236 in	Slotted	0.094 in	1.472 in	Nylon	0.6 mm	3.5 mm
Essentra Components 50M035060M020	Oval Head	0.697 in	Machine Screw	0.323 in	Phillips	0.122 in	0.819 in	Nylon	0.6 mm	3.5 mm
Essentra Components 50M035060I035	Flat Head	1.287 in	Machine Screw	0.323 in	Phillips	0.091 in	1.378 in	Nylon	0.6 mm	3.5 mm
Essentra Components 50M035060K005	Hex Head	0.197 in	Bolt	0.217 in	Slotted		0.299 in	Nylon	0.6 mm	3.5 mm
Essentra Components 50M035060H025	Flat Head	0.894 in	Machine Screw	0.323 in	Slotted	0.091 in	0.984 in	Nylon	0.6 mm	3.5 mm
Essentra Components 50M035060J012	Hex Head	0.472 in	Bolt	0.217 in	Hex Socket		0.575 in	Nylon	0.6 mm	3.5 mm

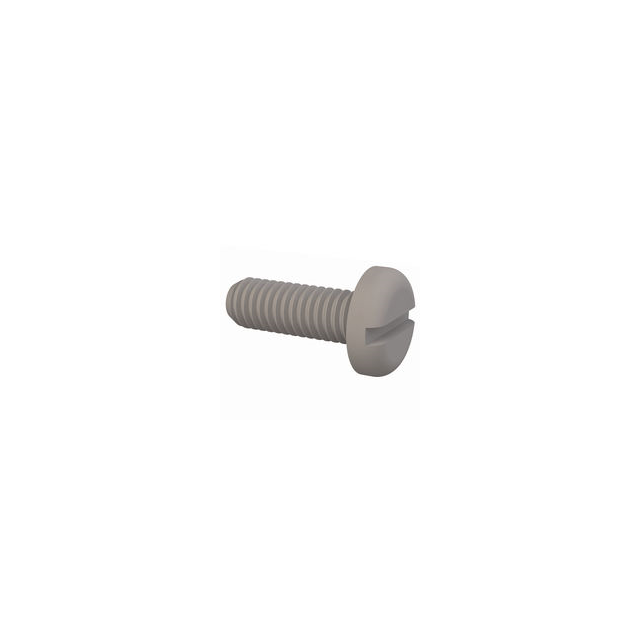

Essentra Components 50M035060N010	Pan Head	0.394 in	Machine Screw	0.276 in	Slotted		0.476 in	Nylon	0.6 mm	3.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
