5220FJ 002500

Active

Belden Inc.

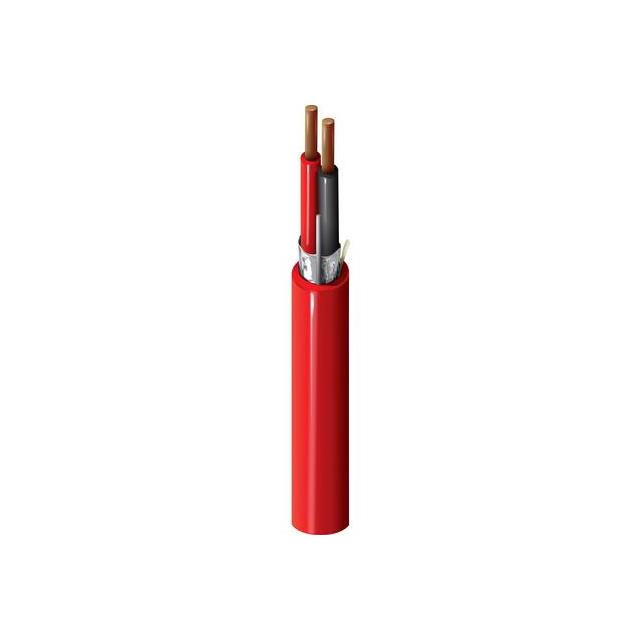

CABLE 2COND 16AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5220FJ 002500

Cable Type	Multi-Conductor
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.97 mm
Jacket (Insulation) Diameter [diameter]	0.235 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Ratings	UL Style FPL
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Cable Type	Usage	Voltage	Number of Conductors	Length [x]	Length [x]	Shield Type	Shield Coverage	Wire Gauge	Conductor Strand	Shield Material	Jacket Color	Features	Ratings	Conductor Material
Belden Inc. 5220FJ 002500	0.838 mm	0.033 in	5.97 mm	0.235 in	Foam High Density Polyethylene (FHDPE)	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Alarm Safety	300 V	2	500 '	152.4 m	Foil	100 %	16 AWG	Solid	Aluminum	Red	Drain Wire Rip Cord	UL Style FPL	Copper Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.69

General part information

2 Conductor Multi-Conductor Cable Red 16 AWG Foil 500.0' (152.4m)
