PF2005 NA005

Active

ALPHA WIRE

PIF2005 NATURAL 100 FT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

PIF2005 NATURAL 100 FT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PF2005 NA005

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Natural
Diameter - Inside [diameter]	0.182 in
Diameter - Inside [diameter]	4.62 mm
Diameter - Outside [diameter]	6.05 mm
Diameter - Outside [diameter]	0.238 in
Environment Protection	Corrosion Resistant
Features	Clean Cut
Length	100 ft
Length	30.48 m
Material	Fiberglass, Silicone Coated
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness [custom]	0.51 mm
Wall Thickness [custom]	0.02 in

PIF2005 NATURAL 100 FT ROHS COMPLIANT: YES

Part	Type	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Color	Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	Length	Length	Environment Protection	Type Attributes	Abrasion Protection
ALPHA WIRE PF2005 NA005	Sleeving	0.51 mm	0.02 in	0.182 in	4.62 mm	Natural	Fiberglass, Silicone Coated	UL VW-1	200 °C	-70 °C	6.05 mm	0.238 in	Clean Cut	100 ft	30.48 m	Corrosion Resistant	Braided	Abrasion Resistant, Fray Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

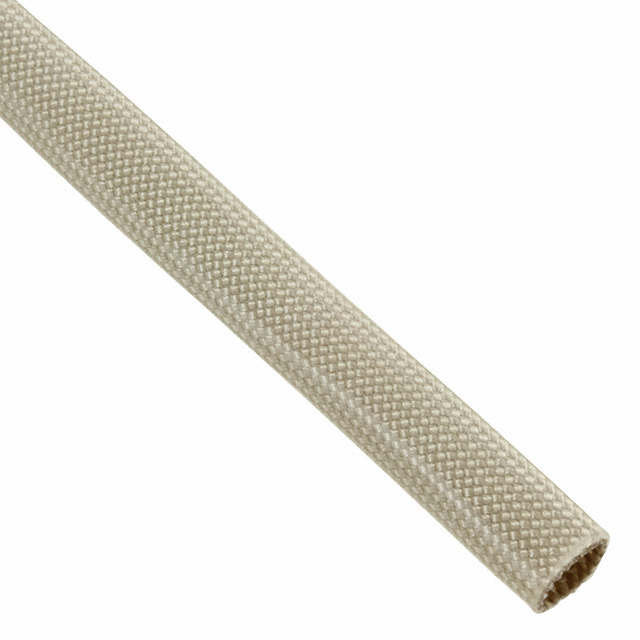

Natural Fiberglass, Silicone Coated Braided Sleeving 0.182" (4.62mm) 100' (30.48m)
